The Xtium series launched by Teledyne DALSA is developed and designed to meet the constantly improving image resolution and faster frame rates of today’s camera technology. The Xtium series image cards can provide greater bandwidth, meet the requirements of CameraLink 80 Bit mode over longer cable distances, and support multiple line/area, color/black and white cameras. All products adopt compact, half length, single slot solutions.

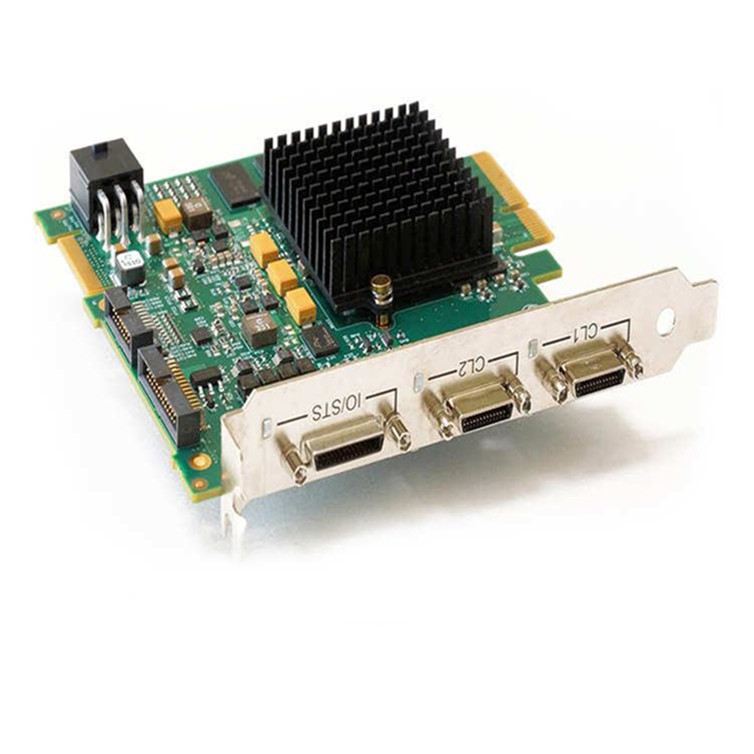

The Xtium CL MX4 image card supports capturing images simultaneously from 2 CameraLink Base cameras or from 1 CameraLink Medium camera, A Full or 80 bit (Deca) camera captures images, fully utilizing the advantages of the PCIe Gen 2.0 × 4 platform, capable of data transmission at a bandwidth of over 1.7GB/s, while supporting PCIe Gen 1.0 slots for transmission at a speed of 850MB/s.

Product Features：
Half height PCI Express Gen 2.0 × 4 acquisition card
Compatible with CameraLink Rev 2.0
Pixel clock can reach 85MHz
The data can be extended in transmission distance while achieving maximum data transmission rate
Enhanced feature set supports advanced CameraLink Pixel/Tap configuration
Supports Windows 7/8/10 (32/64bit), Linux operating system
Fully supports free Sapera LT SDK and T2IR
Compliant with FCC, CE, ROHS, and KC certifications
PoCL power supply technology

Specification parameters
