Product Detail

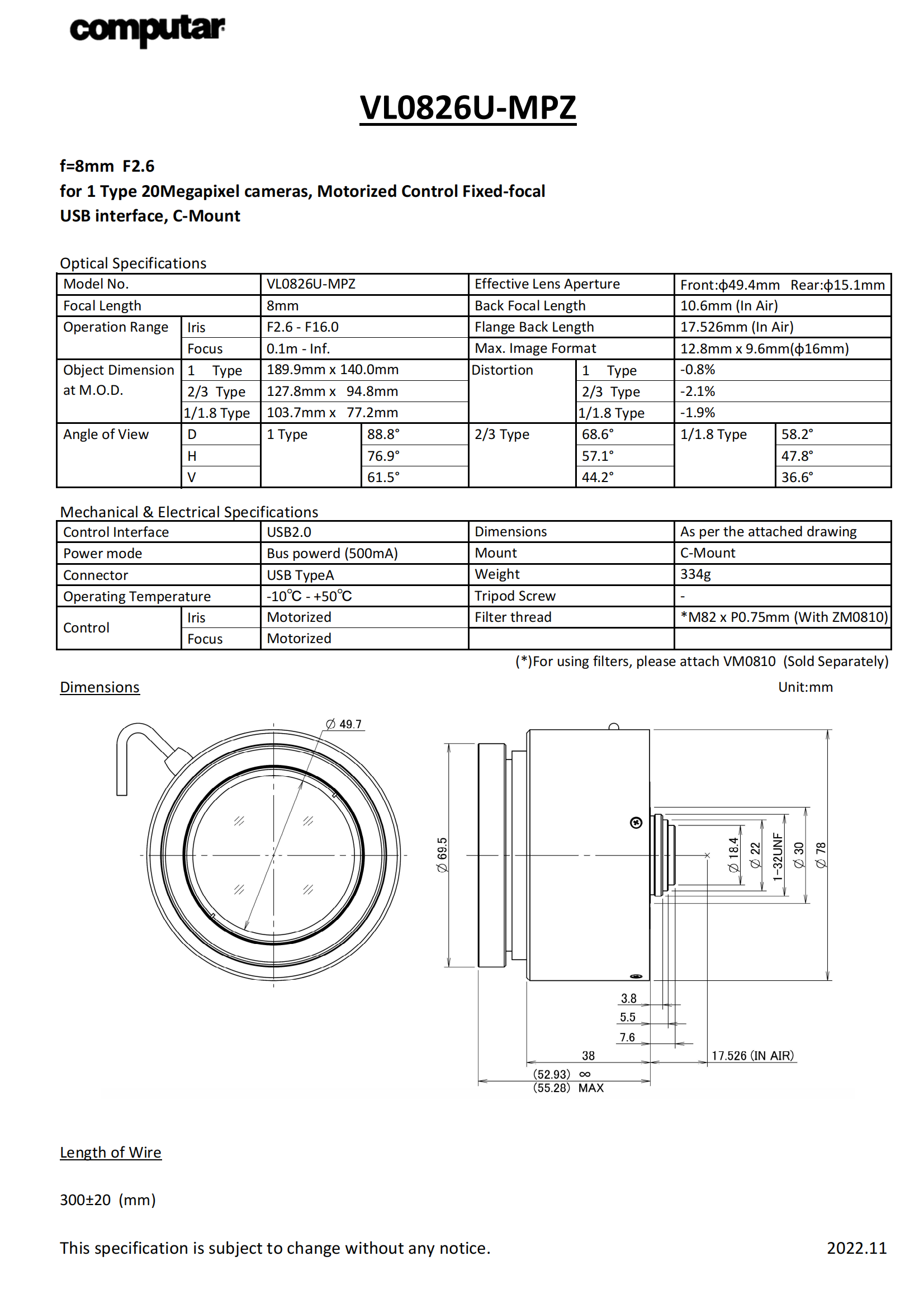

Specification parameters
| focal length | 08mm | ||||||
| Maximum aperture ratio | 1:2.6 | ||||||
| Maximum screen size | 12.8mmX9.6mm(Φ16mm) | ||||||
| scope of work | aperture | F2.6-F16.0 | |||||
| focus | 0.1m-Inf. | ||||||
| control | aperture | electric | |||||
| focus | electric | ||||||
| angle of view | diagonal | 1″ | 88.8° | 2/3″ | 68.6° | 1/1.8″ | 58.2° |
| level | 76.9° | 57.1° | 547.8° | ||||
| vertical | 61.5° | 44.2° | 36.6° | ||||
| operation temperature | -10°C~50°C | ||||||
| distort | 1″ | 0.0% | 2/3″ | 0.0% | 1/1.8″ | 0.0% | |
| back focal length | 10.6mm（In Air) | ||||||
| Rear flange length | 17.526mm (In Air) | ||||||
| interface | C-interface | ||||||
| filter size | M82 P-0.75mm | ||||||
| weight | 334g | ||||||
| control interface | USB2.0 | ||||||
| Power Mode | USB power supply (500mA) | ||||||
| connector | Type A USB interface | ||||||
