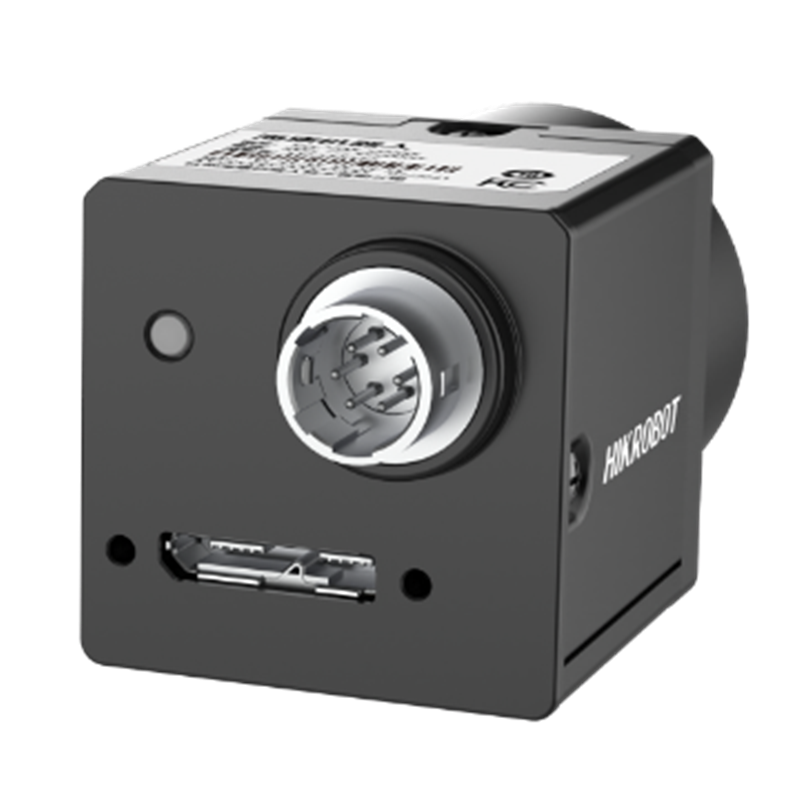

CU series universal industrial camera
The CU series adopts a low-power platform with stable performance, creating a universal industrial camera product that meets both stability and necessary functions, helping users obtain visual applications more easily.
Built in image preprocessing
Implant ISP algorithms such as wide dynamic range, noise reduction, sharpening, etc., which can be flexibly adjusted according to the user’s actual scene, minimizing external interference, stabilizing imaging, and reducing the burden of backend algorithms.
Functional characteristics
Support automatic or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc
Support custom ROI, horizontal and vertical mirroring
Compact structure, with dimensions of 29mm × 29mm × 30mm, suitable for smaller installation requirements
Compatible with USB3 Vision protocol and GenlCam standard, it can seamlessly connect with third-party software platforms
Order model
MV-CU050-60UM
External dimensions
Specifications
| model | model | MV-CU050-60UM |
| name | 5 million pixel USB3.0 area scan camera | |
| performance | Sensor type | CMOS, rolling shutter |
| Pixel size | 2.2 μm×2.2 μm | |
| Target size | 1/2.5′ | |
| resolution | 2592 × 1944 | |
| Max frame rate | 48.2 fps@2592 x 1944 Mono 8 | |
| dynamic range | 65.4 dB | |
| signal-to-noise ratio | 40.7 dB | |
| Gain | 0 dB ~ 24 dB | |
| Exposure time | 12 μs ~ 1.25 sec | |
| shutter mode | Supports automatic exposure, manual exposure, and one-click exposure mode | |
| black and white/color | black and white | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Support 1×1, 2×2 | |
| Downsampling | Support 1×1, 2×2, 4×4 | |
| mirror | Support horizontal mirroring and vertical mirroring output | |
| Electrical characteristics | Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O (Line2) | |
| powered by | 9~24 VDC, supports USB power supply | |
| Typical power consumption | 2.7 W@5 VDC (USB3.0 powered) | |
| structure | Lens mount | C-Mount |
| Overall dimensions | 29mm×29mm×30mm | |
| weight | About 76 g | |
| IP protection level | IP40 (when the lens and cables are installed correctly) | |
| temperature | Working temperature 0 ~ 50°C, storage temperature -30 ~ 70°C | |
| humidity | 20% ~ 80%RH no condensation | |
| General specifications | software | MVS or third party supports USB3 Vision protocol software |
| operating system | Windows XP/7/10/11 32/64 bits, Linux 32/64 bits and MacOS 64bits | |
| Protocols/Standards | USB3 Vision, GenlCam | |
| Certification | CE,FCC,RoHS,KC |
