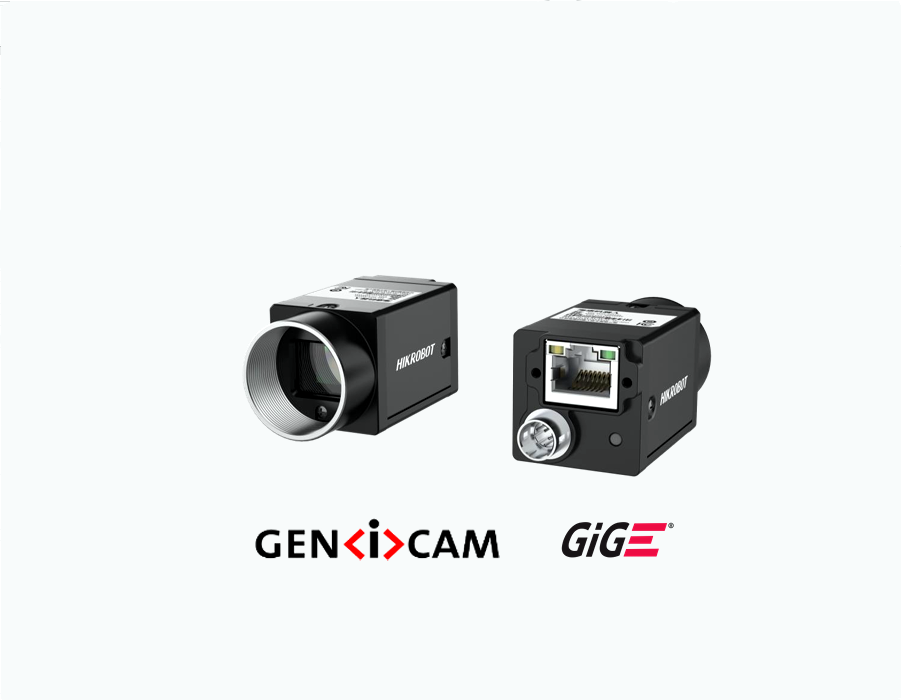

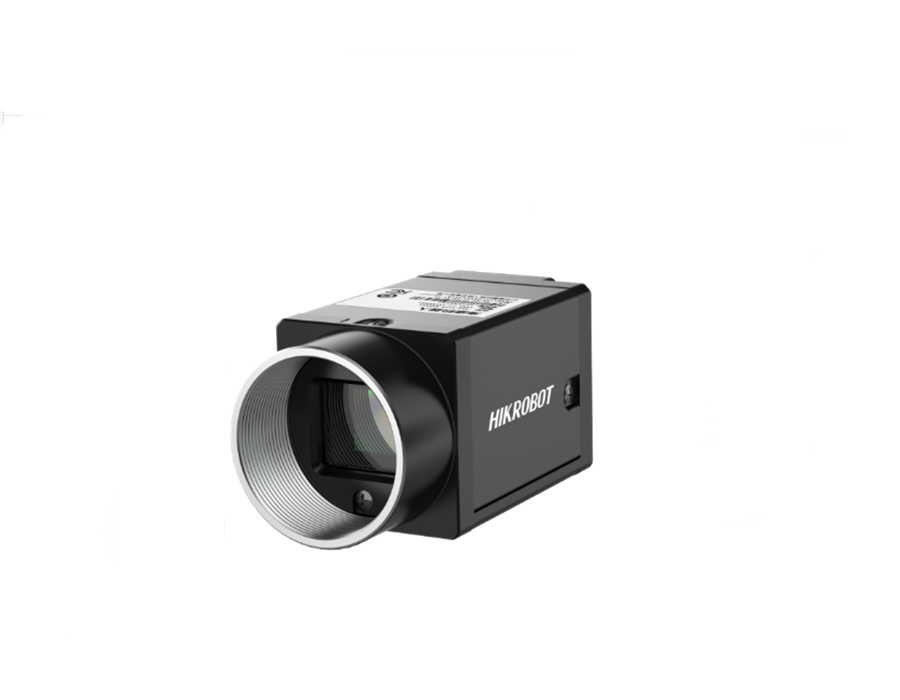

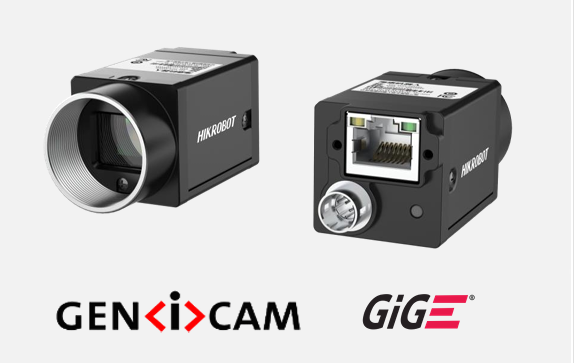

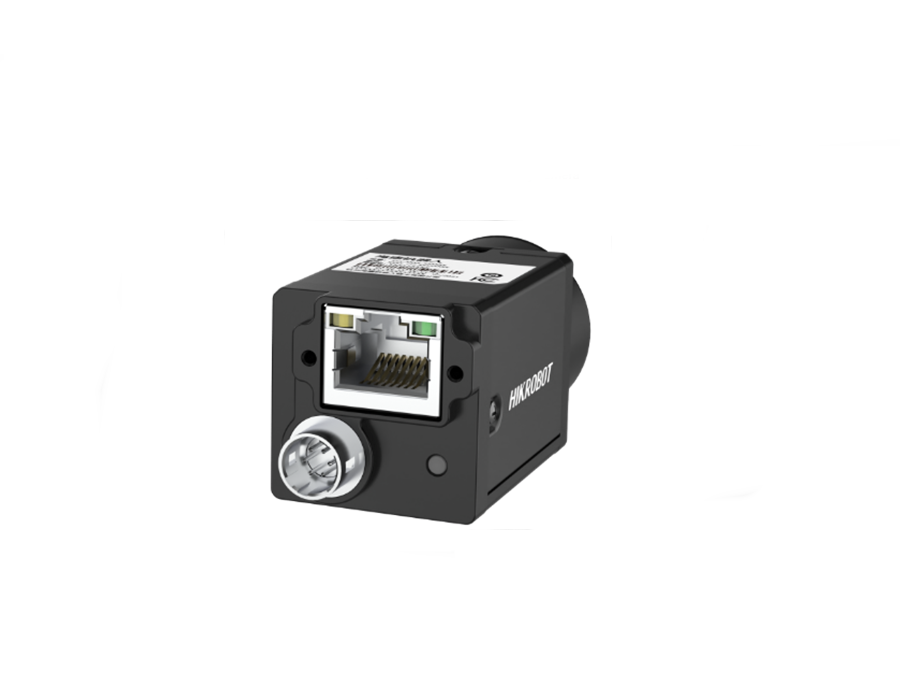

CU series universal industrial camera
The CU series adopts a low-power platform with stable performance, creating a universal industrial camera product that meets both stability and necessary functions, helping users obtain visual applications more easily.
Built in image preprocessing
Implant ISP algorithms such as wide dynamic range, noise reduction, sharpening, etc., which can be flexibly adjusted according to the user’s actual scene, minimizing external interference, stabilizing imaging, and reducing the burden of backend algorithms.
Functional characteristics
Support automatic or manual adjustment of gain, exposure time, LUT, gamma correction, etc
Using a gigabit network interface, the maximum transmission distance can reach 100m without relay
Compatible with GigE Vision V2.0 protocol and GenICam standard, seamlessly integrated with third-party software platforms
Order model
MV-CU013-80GM

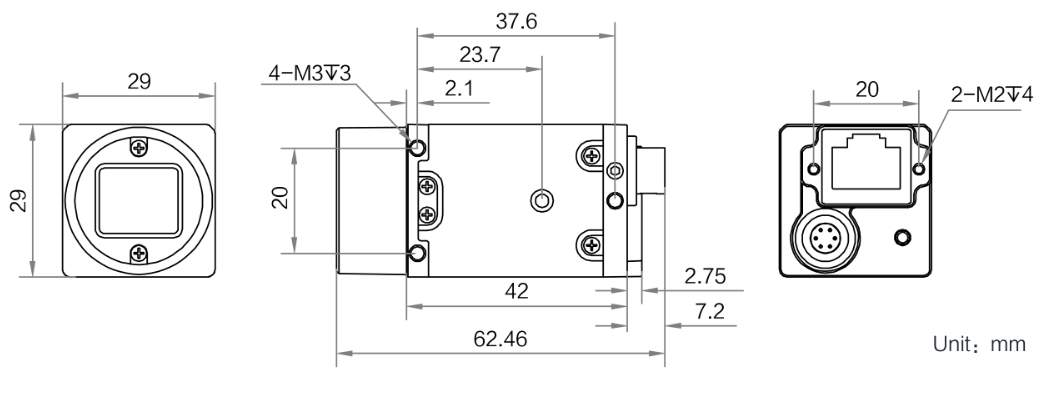

External dimensions
Specifications
| model | model | MV-CU013-80GM |
| name | 1.3 million pixel network port area scan camera, SS, black and white | |
| performance | Sensor type | CMOS, global shutter |
| Sensor model | SS | |
| Pixel size | 4 μm × 4 μm | |
| Target size | 1/2.7′ | |
| resolution | 1280 × 1024 | |
| Max frame rate | 89.9 fps@1280×1024 Mono 8 | |
| dynamic range | 54.5 dB | |
| signal-to-noise ratio | 39.2 dB | |
| Gain | 0 dB ~ 20 dB | |
| Exposure time | 31 μs~1 sec | |
| shutter mode | Supports automatic exposure, manual exposure, and one-click exposure mode | |
| black and white/color | black and white | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Support 1×1,2×2,4×4 | |
| Downsampling | Support 1×1,2×2,4×4 | |
| mirror | Support horizontal mirroring and vertical mirroring | |
| Electrical characteristics | Data interface | Gigabit Ethernet (1000Mbit/s) compatible with Fast Ethernet (100Mbit/s) |
| Digital I/O | 6-pin P7 interface provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O (Line2) | |
| powered by | 9 ~ 24 VDC, PoE optional | |
| Typical power consumption | 1.9W@12VDC | |
| structure | Lens mount | C-Mount |
| Overall dimensions | 29 mm × 29 mm × 42 mm | |
| weight | about 100 g | |
| IP protection level | IP30 (when the lens and cables are installed correctly) | |
| temperature | Working temperature 0 ~ 50°C, storage temperature -30 ~ 70°C | |
| humidity | 20% ~ 95%RH no condensation | |
| General specifications | software | MVS or third party supports GigE Vision protocol software |
| operating system | Windows XP/7/10/11 32/64bits, Linux 32/64bits, MacOS 64bits | |
| Protocols/Standards | GigE Vision V2.0,GenICam | |
| Certification | CE,RoHS,KC |
