The second generation upgrade, new functions are online
The CS series of new second-generation industrial cameras are equipped with excellent image sensors, with high dynamic range, good signal-to-noise ratio, excellent image quality, excellent power consumption design, and are compatible with machine vision
Jue standard protocol and GenlCam standard, seamlessly connect with third-party software.
Functional characteristics
New hardware platform, optimized logic resources, significantly reduced power consumption
Rich in features, supporting Sequencer, contrast, super color palette, etc
Support hard trigger, soft trigger, and free running modes
New generation appearance structure design, supporting four sided installation
Compatible with GigE Vision V2.0 protocol and GenlCam standard, seamlessly integrated with third-party software
Order model

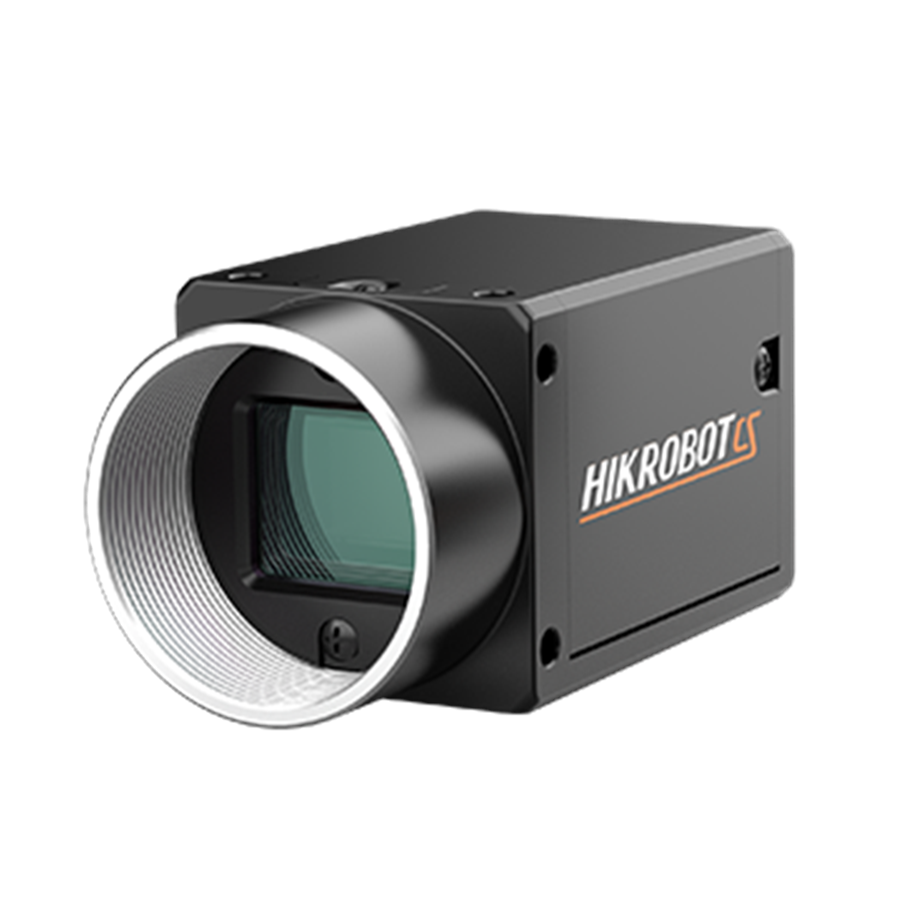

MV-CS020-10GC
External dimensions
Specifications
| Model |
Product Model |
MV-CS020-10GC |
| Type |
2MP Area Scan Camera, GigE, IMX430, Color |
| Performance |
Sensor type |
CMOS, global shutter |
| Sensor model |
Sony® IMX430 |
| Pixel size |
4.5 μm × 4.5 μm |
| Sensor size |
1/1.7″ |
| Resolution |
1624 × 1240 |
| Max. frame rate |
60 fps @1624 × 1240 Bayer RG 8 |
| Dynamic range |
72.1 dB |
| SNR |
43.8 dB |
| Gain |
0 dB to 24 dB |
| Exposure time |
UltraShort exposure mode: 1 μs to 5 μs Standard exposure mode: 6 μs to 10 sec |
| Exposure mode |
Off/Once/Continuous exposure mode |
| Mono/color |
Color |
| Pixel format |
Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| Binning |
Supports 1 × 1, 2 × 2 |
| Decimation |
Supports 1 × 1, 2 × 2 |
| Reverse image |
Supports horizontal and vertical reverse image output |
| Electrical feature |
Data interface |
Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O |
6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply |
9 VDC to 24 VDC, supports PoE |
| Power consumption |
Typ. 3.0 W@12 VDC |
| Mechanical |
Lens mount |
C-Mount |
| Dimension |
29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.2″) |
| Weight |
Approx. 100 g (0.22 lb.) |
| Ingress protection |
IP40 (under proper lens installation and wiring) |
| Temperature |
Working temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity |
20% to 95% RH, non-condensing |
| General |
Client software |
MVS or third-party software meeting with GigE Vision Protocol |
| Operating system |
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility |
GigE Vision V2.0, GenICam |
| Certification |
CE, RoHS, KC |
