The second generation upgrade, new functions are online

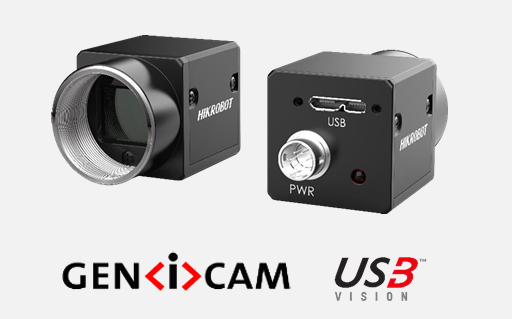

The CS series of new second-generation industrial cameras are equipped with excellent image sensors, with high dynamic range, good signal-to-noise ratio, excellent image quality, excellent power consumption design, and are compatible with machine vision
Jue standard protocol and GenlCam standard, seamlessly connect with third-party software.
Functional characteristics
New hardware platform, optimized logic resources, significantly reduced power consumption
Rich in features, supporting Sequencer, contrast, white balance, Gamma, etc
Support hard trigger, soft trigger, and free running modes
New generation appearance structure design, supporting four sided installation
Compatible with USB3 Vision protocol and GenlCam standard, seamlessly integrated with third-party software
Order model
MV-CS004-10UC
External dimensions
Specifications
| Model |
Product Model |
MV-CS004-10UC |
| Type |
0.4MP Area Scan Camera, USB3.0, IMX287, 2nd Gen., Color |
| Performance |
Sensor type |
CMOS, global shutter |
| Sensor model |
Sony® IMX287 |
| Pixel size |
6.9 μm × 6.9 μm |
| Sensor size |
1/2.9″ |
| Resolution |
720 × 540 |
| Max. frame rate |
526.5 fps @720 × 540 Bayer RG 8 |
| Dynamic range |
73.6 dB |
| SNR |
42.9 dB |
| Gain |
0 dB to 24 dB |
| Exposure time |
UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Exposure mode |
Off/Once/Continuous exposure mode |
| Mono/color |
Color |
| Pixel format |
Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| Binning |
Supports 1 × 1, 2 × 2 |
| Decimation |
Supports 1 × 1, 2 × 2 |
| Reverse image |
Supports horizontal and vertical reverse image output |
| Electrical feature |
Data interface |
USB3.0, compatible with USB2.0 |
| Digital I/O |
6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply |
9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption |
Typ. 2.6 W@5 VDC (USB3.0 provides power supply) |
| Mechanical |
Lens mount |
C-Mount |
| Dimension |
29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″) |
| Weight |
Approx. 80 g (0.18 lb.) |
| Ingress protection |
IP40 (under proper lens installation and wiring) |
| Temperature |
Working temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity |
20% to 95% RH, non-condensing |
| General |
Client software |
MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system |
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility |
USB3 Vision, GenlCam |
| Certification |
CE, RoHS, KC |
| EMVA data（typical） |
Quantum efficiency |
58.3 % |
| Dark noise |
3.3 e-@12 bit |
| Signal-to-noise ratio |
42.9 dB |
| Saturation capacity |
19.6 ke- |
| Dynamic range |
73.6 dB |
