Functional characteristics
New hardware platform, optimized logic resources, significantly reduced power consumption
Support automatic or manual adjustment of gain, exposure time, white balance, LUT, gamma correction, etc
The camera is equipped with features such as noise reduction and CCM, resulting in excellent image quality
Gigabit network interface, with no relay, the maximum transmission distance can reach 100m
New generation appearance structure design, supporting four sided installation
Compatible with GigE Vision V2.0 protocol and GenlCam standard, seamlessly integrating with third-party software
Order model

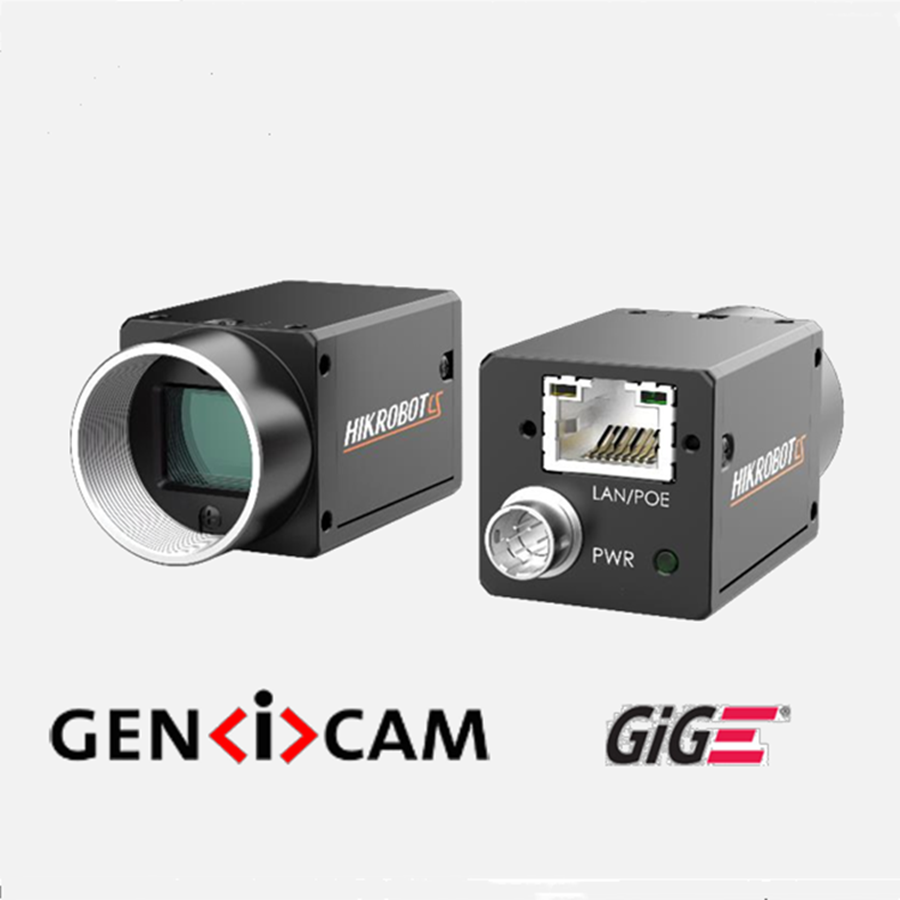

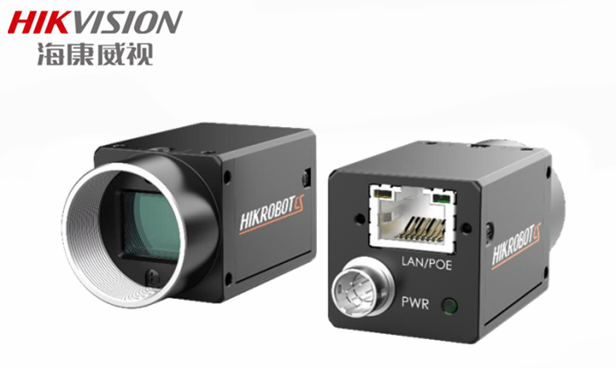

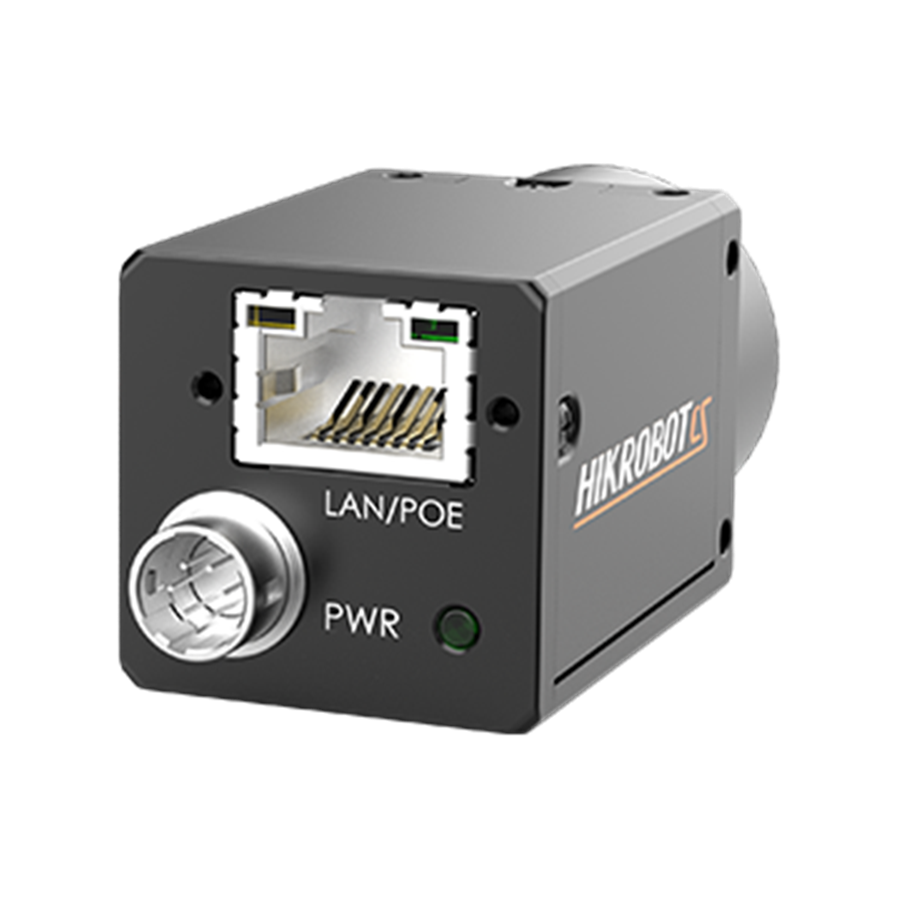

MV-CS004-10GC
External dimensions
Specifications
| Model | Product Model | MV-CS004-10GC |
| Type | 0.4MP Area Scan Camera,GigE,IMX297,Color | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX297 | |
| Pixel size | 6.9 μm × 6.9 μm | |
| Sensor size | 1/2.9″ | |
| Resolution | 720 × 540 | |
| Max. frame rate | 125.2 fps @720 × 540 | |
| Dynamic range | 74 dB | |
| SNR | 41 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Color | |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports PoE | |
| Power consumption | Typ. 2.5 W@12 VDC | |
| Mechanical | Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.2″) | |
| Weight | Approx. 100 g (0.22 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, RoHS, KC |
