Product Detail

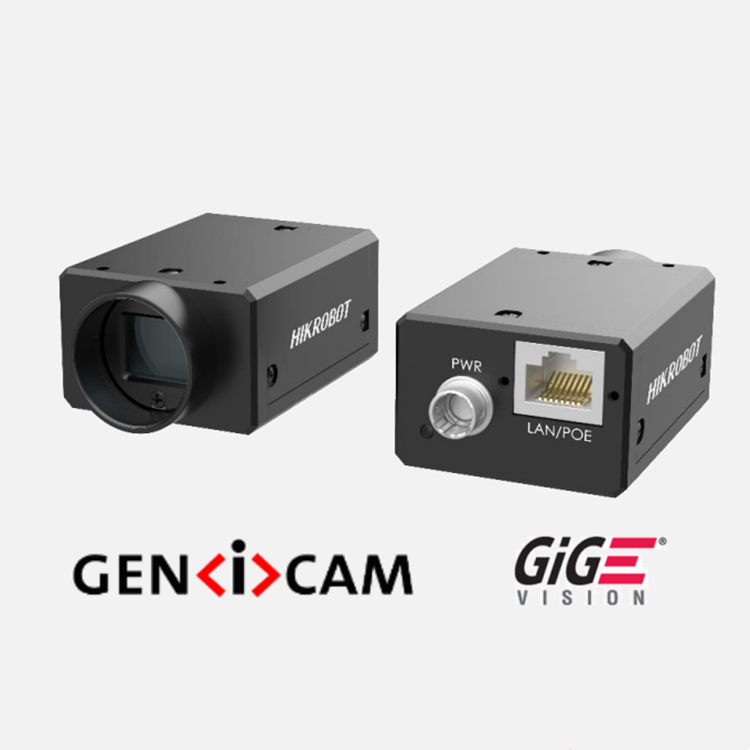

CE series industrial area array camera
The CE series is an economical series product that focuses on high cost-effectiveness, with a pixel coverage of 300000 to 20 million pixels, mainly for roller shutter exposure. Provide gigabit network and USB 3.0 data interface to meet various industrial needs.

Compact size, comprehensive functions
The entire series is compatible with C-port lenses, occupying only the size of ordinary Ethernet or U-port cameras. It has various image optimization parameters built-in, making it easy to adjust the imaging effect

Rolling shutter shutter, global reset
Support Global Reset function. By combining I/O output with a strobe light source, moving objects can be captured without ghosting

Functional characteristics

Support automatic or manual adjustment of gain, exposure time, LUT, gamma correction, etc
The color camera is equipped with excellent image interpolation algorithms for better color reproduction and supports automatic balancing
Gigabit Ethernet interface, maximum transmission distance up to 100m without relay
Support hard trigger, soft trigger, and free running mode
Compatible with GigE Vision V1.2 protocol and GenlCam standard, seamlessly linking with third-party software

Order model

MV-CE013-50GM

External dimensions

Specifications

model	model	MV-CE013-50GM
model	name	1.3 million pixel network port area scan camera, RJ33, black and white
performance	Sensor type	CCD, global shutter
	Sensor model	Sharp RJ33
	Pixel size	3.75 μm × 3.75 μm
	Target size	1/3′
	resolution	1280 × 960
	Max frame rate	30 fps @1280 × 960 Mono 8
	dynamic range	60 dB
	signal-to-noise ratio	37 dB
	Gain	0 dB ~ 20 dB
	Exposure time	34 μs ~ 1 sec
	shutter mode	Supports automatic exposure, manual exposure, and one-click exposure mode
	black and white/color	black and white
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Not supported
	Downsampling	Not supported
	mirror	Support horizontal mirroring
Electrical characteristics	Data interface	Gigabit Ethernet (1000 Mbit/s) compatible with Fast Ethernet (100 Mbit/s)
	Digital I/O	6-pin P7 connector provides power supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O (Line2)
	powered by	12 VDC, supports PoE power supply
	Typical power consumption	2.6W@12VDC
structure	Lens mount	C-Mount
	Overall dimensions	29 mm × 29 mm × 42 mm
	weight	About 68 g
	IP protection level	IP30 (when the lens and cables are installed correctly)
	temperature	Working temperature 0 ~ 50°C, storage temperature -30 ~ 70°C
	humidity	20% ~ 80%RH no condensation
General specifications	software	MVS or third party supports GigE Vision protocol software
	operating system	Windows XP/7/10/11 32/64bits, Linux 32/64bits and MacOS 64bits
	Protocols/Standards	GigE Vision V1.2,GenICam
	Certification	CE,RoHS,KC
