Product Detail

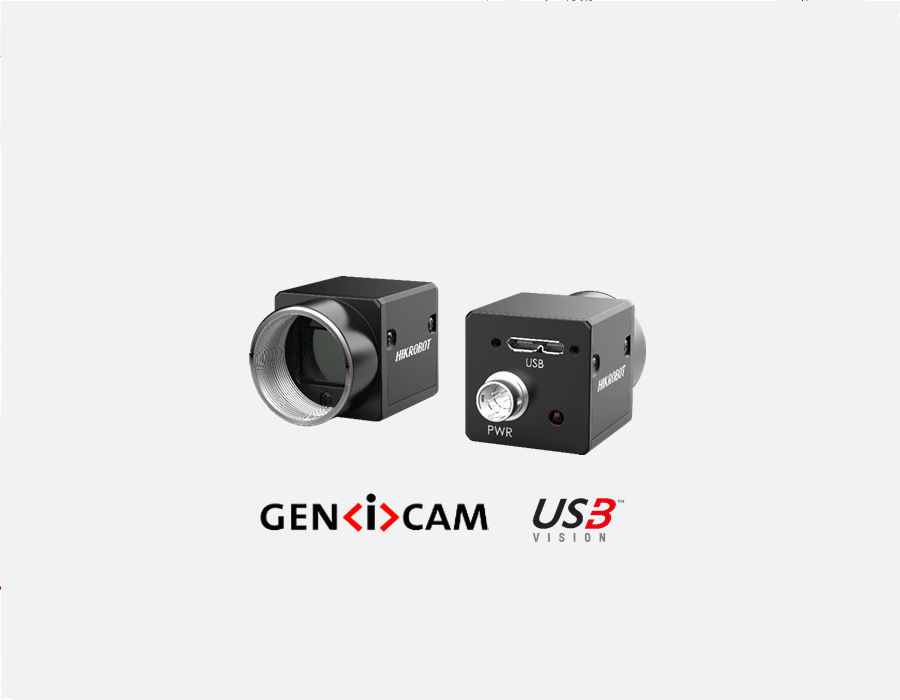

CA series industrial area array camera
The CA series is an advanced series of products with dense resolution layout, which can meet the needs of segmented applications. The selected Sony chip has excellent imaging quality, and the Onsemi chip series has consistent pixel sizes. It can achieve field of view upgrades with the same pixel accuracy without adjusting the lens imaging distance.

Complete resolution with infrared sensing model
Covering 300000 to 6 million pixels, it has two data interfaces: Ethernet and USB, with a maximum frame rate of 814fps. It has a near-infrared enhanced camera model that can meet the visual application needs in the near-infrared band (750-1100nm).
HDR
High dynamic range
Sensitivity
high sensitivity
Low Dark Current
Low dark current
HQE
High quantum efficiency
Low Noise
high sensitivity

Global shutter, dynamic imaging
This series is mainly equipped with a global shutter sensor, which can easily capture high-speed dynamic images and meet the needs of mainstream applications; Some models can support a minimum of 1 μ s ultra short exposure, suitable for industries such as aerial photography.

Functional characteristics

Support automatic or manual adjustment of gain, exposure time, white balance, gamma, LUT correction, etc
Support custom ROI, horizontal and vertical mirroring
Support hard trigger, soft trigger, and free running mode
Compact structure, with dimensions of 29mm × 29mm × 30mm, suitable for smaller installation requirements
Compatible with USB3 Vision protocol and GenICam standard, it can seamlessly connect with third-party software platforms

Order model

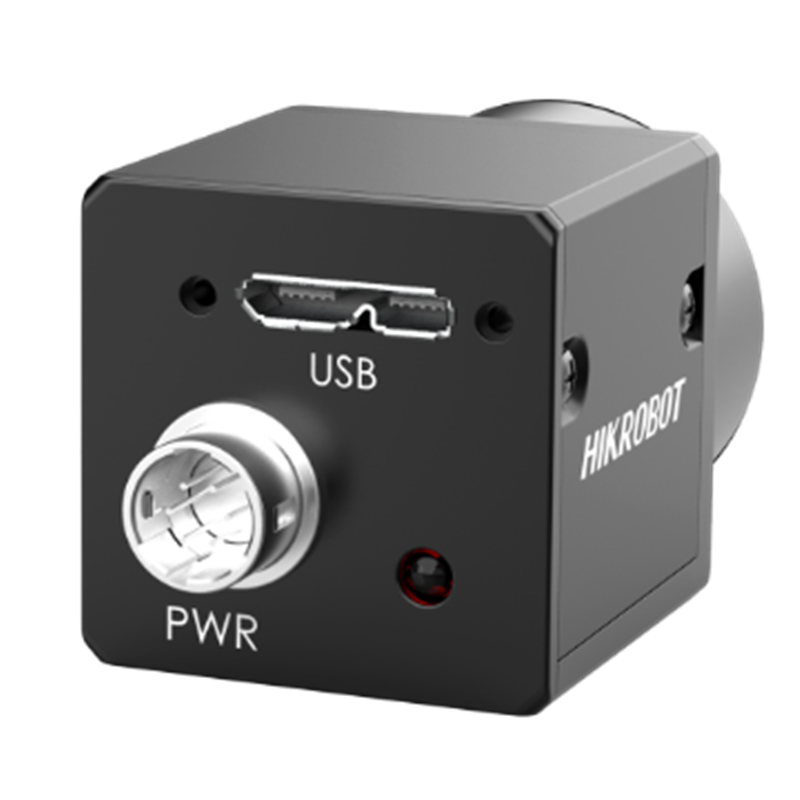

MV-CA023-10UC

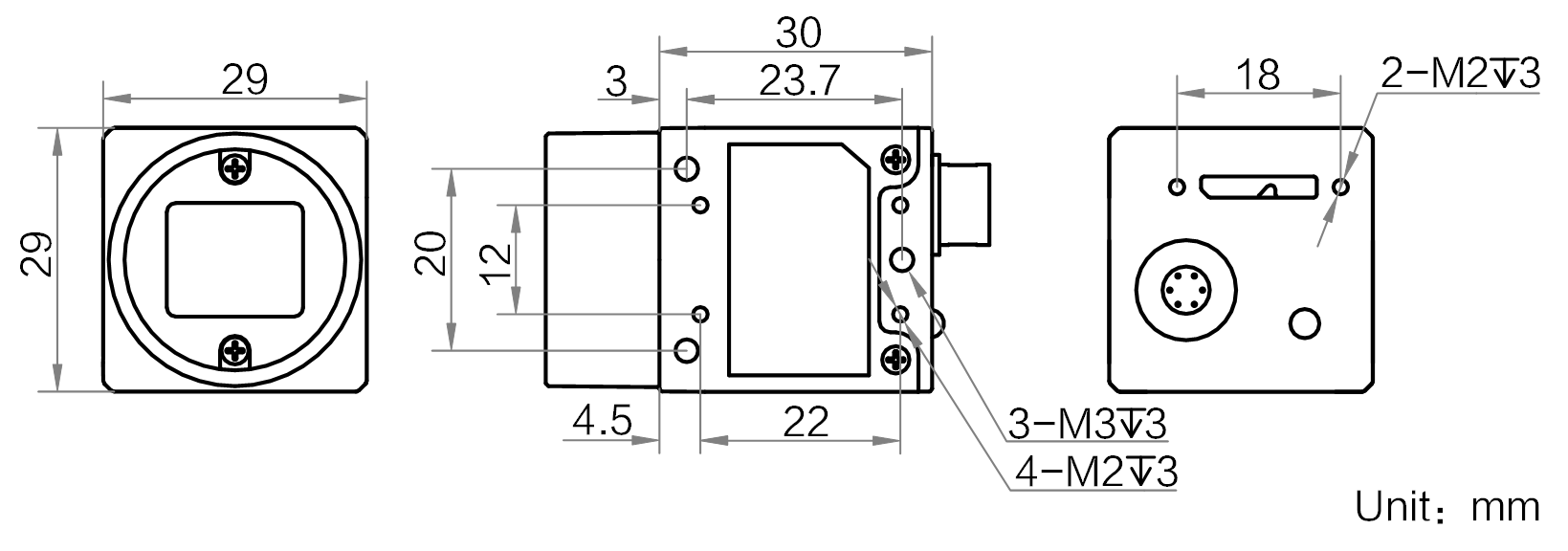

External dimensions

Specifications

Model	Product Model	MV-CA023-10UC
Model	Type	2.3MP Area Scan Camera, USB3,IMX249,Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	Sony® IMX249
	Pixel size	5.86 μm × 5.86 μm
	Sensor size	1/1.2″
	Resolution	1920 × 1200
	Max. frame rate	40 fps @1920 × 1200
	Dynamic range	70 dB
	SNR	40 dB
	Gain	0 dB to 20 dB
	Exposure time	34 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0, compatible with USB2.0
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	12 VDC, supports USB 3.0 power supply
	Power consumption	Typ. 2.5 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″)
	Weight	Approx. 56 g (0.12 lb.)
	Ingress protection	IP30 (under correct lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software compatible with USB3 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, FCC, RoHS, KC
