CA series industrial area array camera
The CA series is an advanced series of products with dense resolution layout, which can meet the needs of segmented applications. The selected Sony chip has excellent imaging quality, and the Onsemi chip series has consistent pixel sizes. It can achieve field of view upgrades with the same pixel accuracy without adjusting the lens imaging distance.

Complete resolution with infrared sensing model
Covering 300000 to 6 million pixels, it has two data interfaces: Ethernet and USB, with a maximum frame rate of 814fps. It has a near-infrared enhanced camera model that can meet the visual application needs in the near-infrared band (750-1100nm).
HDR
High dynamic range
Sensitivity
high sensitivity
Low Dark Current
Low dark current
HQE
High quantum efficiency
Low Noise
high sensitivity

Global shutter, dynamic imaging
This series is mainly equipped with a global shutter sensor, which can easily capture high-speed dynamic images and meet the needs of mainstream applications; Some models can support a minimum of 1 μ s ultra short exposure, suitable for industries such as aerial photography.

Functional characteristics
Support automatic or manual adjustment of gain, exposure time, LUT, gamma correction, etc
Using a gigabit network interface, the maximum transmission distance can reach 100m without relay
128MB onboard cache, capable of caching multiple images for burst transmission or image retransmission
Compatible with GigE Vision V2.0 protocol and GenlCam standard, seamlessly integrated with third-party software platforms

Order model

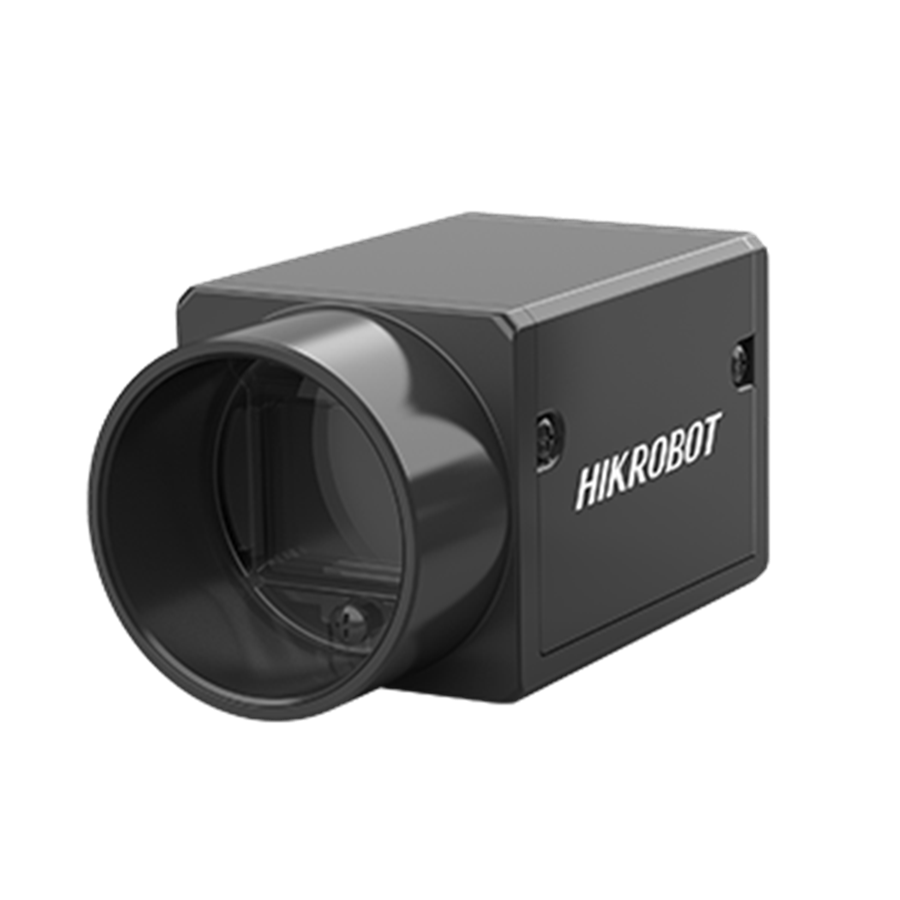

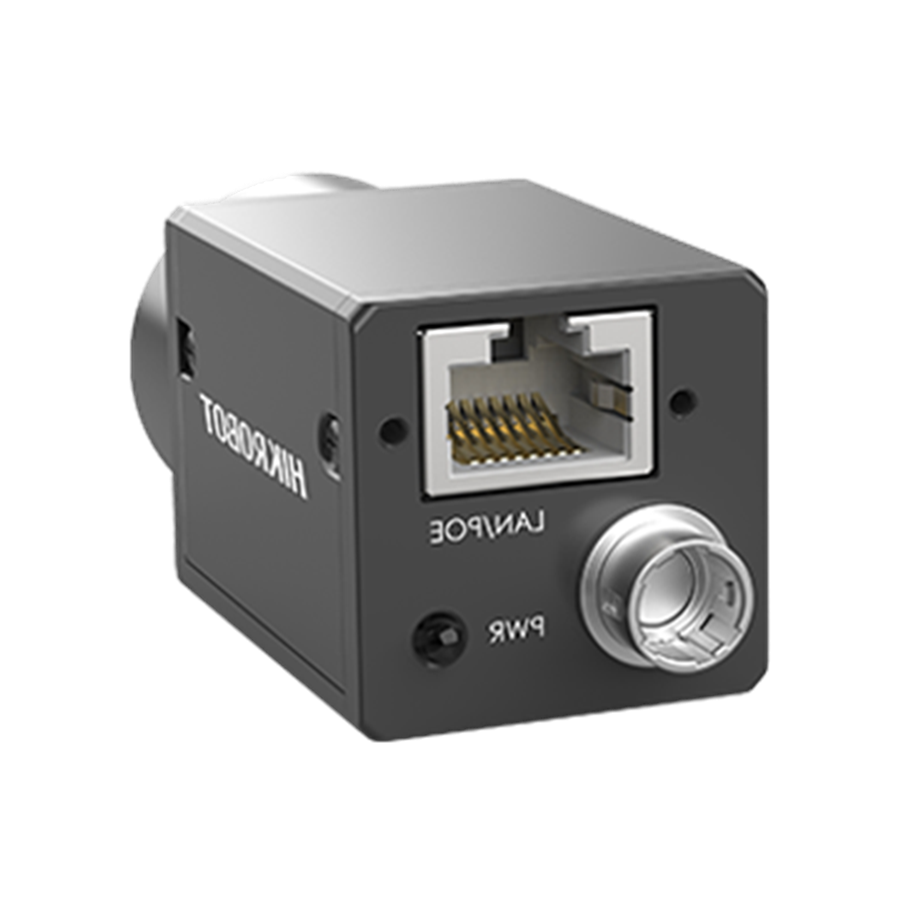

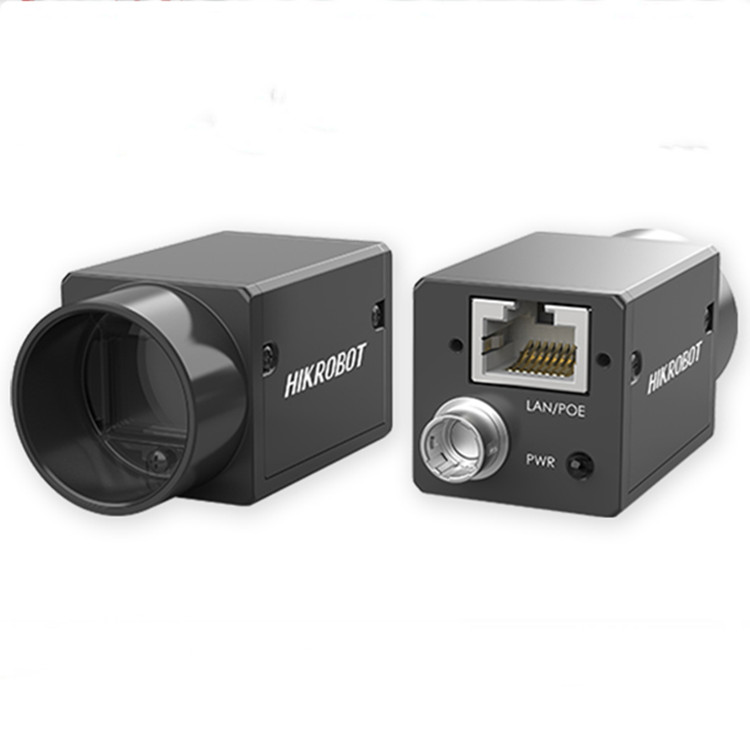

MV-CA013-20GM

External dimensions

Specifications

odel	Product Model	MV-CA013-20GM
odel	Type	1.3MP Area Scan Camera, GigE,PYTHON1300,Mono
Performance	Sensor type	CMOS, global shutter
	Sensor model	OnSemi PYTHON1300
	Pixel size	4.8 μm × 4.8 μm
	Sensor size	1/2″
	Resolution	1280 × 1024
	Max. frame rate	90 fps @1280 × 1024
	Dynamic range	59.6 dB
	SNR	39.8 dB
	Gain	0 dB to 15 dB
	Exposure time	38 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 1 × 2, 2 × 1, 1 × 4, 4 × 1, 2 × 2, 2 × 4, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
	Image buffer	128 MB
Electrical feature	Data interface	Gigabit Ethernet, compatible with Fast Ethernet
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	12 VDC, supports PoE
	Power consumption	Typ. 2.7 W@12 VDC
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
	Weight	Approx. 68 g (0.15 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, FCC, RoHS, KC
