MER-131-210U3M NIR
Mercury’s first generation 1.3 megapixel USB3.0 interface near-infrared industrial camera
The Mercury (MER-U3) series digital camera is a mature area array industrial digital camera independently developed by Daheng Imaging. Its external dimensions are only 29mm × 29mm × 29mm, making it a good choice for users with strict camera size requirements. MER-131-210U3M NIR adopts the global exposure Onsemi PYTHON 1300 CMOS photosensitive chip, which optimizes the chip’s response in the near-infrared band. This product transmits image data through USB 3.0 data interface and integrates I/O (GPIO) interface, providing cable locking device. It can work stably in various harsh environments and is a highly reliable and cost-effective industrial digital camera product. MER-131-210U3M NIR has the characteristics of high definition, low noise, compact design, easy installation and use, and is suitable for industrial testing, medical, scientific research, and education fields.
Product Features
Support custom ROI, reducing resolution can increase frame rate
Gain and exposure time programmable settings
Automatic gain, automatic exposure
Three working modes: continuous acquisition/soft triggered acquisition/external triggered acquisition
Can output flash synchronization signal to achieve precise synchronization of exposure and fill light
Support parameter group function
Support horizontal mirroring, vertical mirroring, and pixel sampling functions
Support adjustable transmission of data blocks, providing better compatibility and adaptability
Support device soft reset function
Durable all metal casing and cable locking device
Support GenICam ™ And USB3 Vision ®， Can directly connect to third-party software such as HALCON, MERLIC, LabVIEW, etc
Compliant with CE, RoHS, and FCC certifications
The driver has been optimized for 32-bit/64 bit Windows and supports operating systems and architectures such as Linux, Android, ARMv7, and ARMv8
Free SDK and rich secondary development instance source code
External dimensions
Specifications

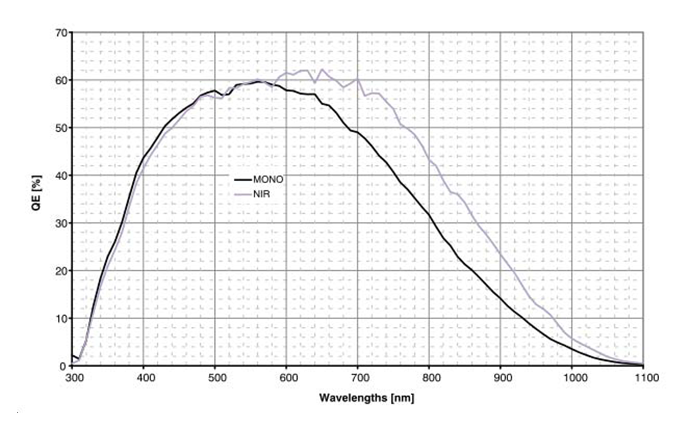

Spectral Curve
