MER-1220-32U3C
Mercury’s first generation 12 megapixel USB3.0 interface color industrial camera
The Mercury (MER-U3) series digital camera is a mature area array industrial digital camera independently developed by Daheng Imaging. Its external dimensions are only 29mm × 29mm × 29mm, making it a good choice for users with strict camera size requirements. MER-1220-32U3C adopts Sony IMX226 CMOS photosensitive chip with line exposure, which transmits image data through USB 3.0 data interface and integrates I/O (GPIO) interface. It provides cable locking device and can work stably in various harsh environments. It is a highly reliable and cost-effective industrial digital camera product. MER-1220-32U3C has the characteristics of high resolution, high definition, low noise, easy installation and use, and is suitable for industrial testing, medical, scientific research, and education fields.

Product Features
Programmable settings for gain, exposure time, and white balance
Automatic gain, automatic exposure, automatic white balance
Three working modes: continuous acquisition/soft triggered acquisition/external triggered acquisition
Can output flash synchronization signal to achieve precise synchronization of exposure and fill light
Support parameter group function
Support adjustable transmission of data blocks, providing better compatibility and adaptability
Support device soft reset function
Durable all metal casing and cable locking device
Support GenICam ™ And USB3 Vision ®， Can directly connect to third-party software such as HALCON, MERLIC, LabVIEW, etc
Compliant with CE, RoHS, and FCC certifications
The driver has been optimized for 32-bit/64 bit Windows and supports operating systems and architectures such as Linux, Android, ARMv7, and ARMv8
Free SDK and rich secondary development instance source code

External dimensions

Specifications

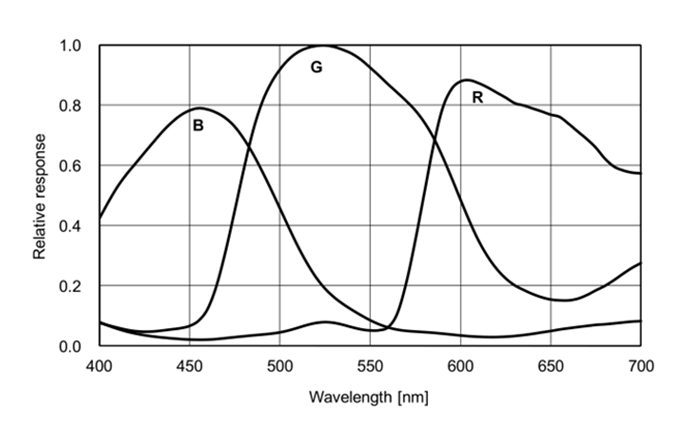

Spectral Curve
