MER-031-300GM

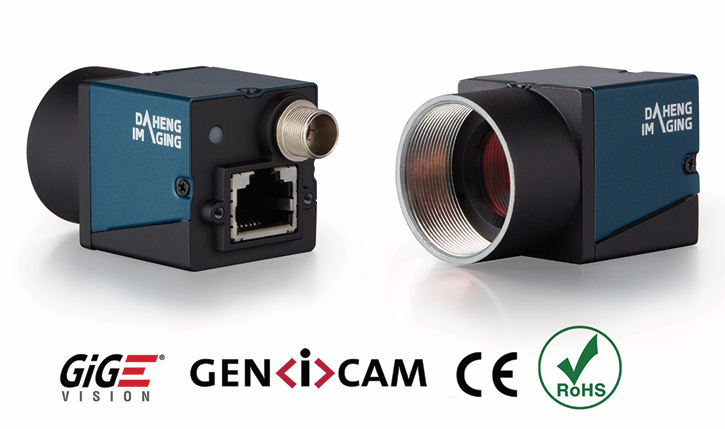

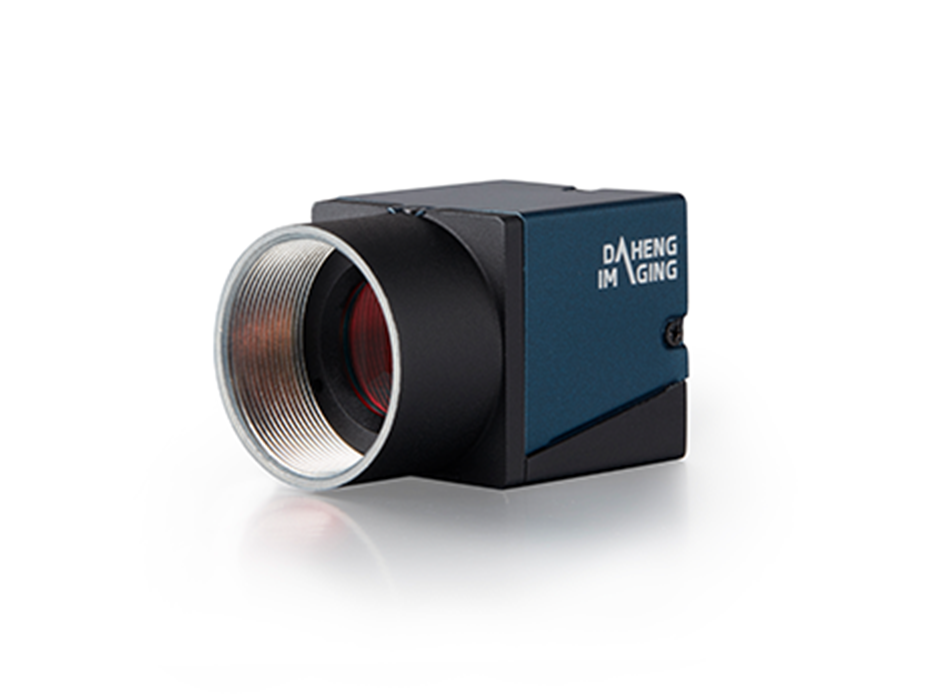

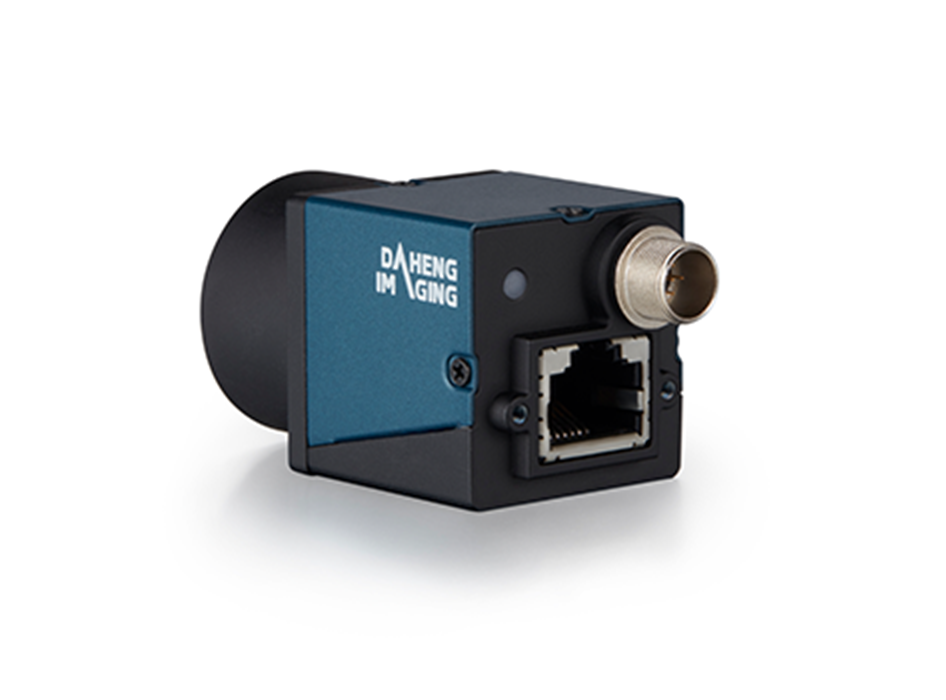

Mercury’s first generation 300000 pixel GigE interface black and white industrial camera
The Mercury (MER-G) series digital camera is a mature area array industrial digital camera independently developed by Daheng Imaging. Its external dimensions are only 29mm × 29mm × 29mm, making it a good choice for users with strict camera size requirements. The MER-031-300GM adopts the global exposure Onsemi PYTHON 300 CMOS photosensitive chip, which transmits image data through the GigE data interface and integrates I/O (GPIO) interfaces. It provides cable locking devices and can work stably in various harsh environments. It is a highly reliable and cost-effective industrial digital camera product. MER-031-300GM has excellent performance, compact design, easy installation and use, and is suitable for industrial testing, medical, scientific research, and education fields.

Product Features
Support custom ROI, reducing resolution can increase frame rate
Gain and exposure time programmable settings
Three working modes: continuous acquisition/soft triggered acquisition/external triggered acquisition
Output image data format: Mono8 / Mono10
Support exposure completion event notification function
Can output flash synchronization signal to achieve precise synchronization of exposure and fill light
Support adjusting packet length, packet interval, reserved bandwidth, and optimizing multi machine simultaneous data collection and transmission
Support lookup table and parameter group functions
Durable all metal casing and cable locking device
Supports single cable transmission up to 100 meters in length
Support GenICam ™ With GigE Vision ®， Can directly connect to third-party software such as HALCON, MERLIC, LabVIEW, etc
Compliant with CE, RoHS, and FCC certifications
The driver has been optimized for 32-bit/64 bit Windows and supports operating systems and architectures such as Linux, ARMv7, and ARMv8
Free SDK and rich secondary development instance source code

External dimensions

Specifications

Spectral Curve
