Linea LA-CM-16K05A
Linea LA-CM-16K05A
Mini Cameralink line array camera produced by Linea Mono 16K 48KHz CL Teledyne Dalsa. Adopting a 16k CMOS linear array chip, with a pixel size of 3.5 µ m x 3.5 µ m and a maximum line frequency of 48KH......
  • :

Inquiry
Product Detail

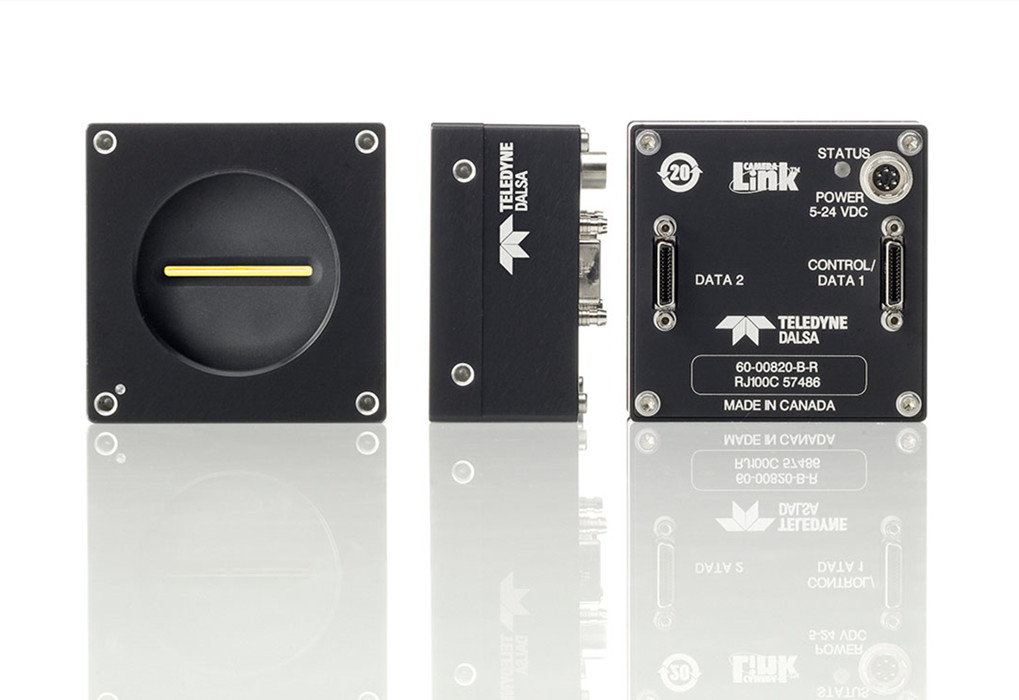

Mini Cameralink line array camera produced by Linea Mono 16K 48KHz CL Teledyne Dalsa. Adopting a 16k CMOS linear array chip, with a pixel size of 3.5 µ m x 3.5 µ m and a maximum line frequency of 48KHz. The camera has fast speed, excellent performance, outstanding sensitivity, and high cost-effectiveness, which can meet demanding application requirements. The camera has a compact and lightweight appearance, with advanced features such as comprehensive flat field correction, support for multiple ROIs, programmable GPIO intelligent triggering, and multiple environmental parameter setting groups. Compatible with GenICam, easy to install and integrate

Characteristic highlights:
Fast speed and high sensitivity
Outstanding cost-effectiveness
Complete flat field correction function
Enhanced near-infrared spectral responsivity
Support multiple ROIs for independent flat field correction

Application areas:
Material classification and testing
traffic safety
General Machine Vision Applications

Specifications

Product number LA-CM-16K05A
Resolution 16384 x 1
Maximum line frequency 48KHz
Black and White/Color black and white
Chip type CMOS
Pixel size 3.52µm x 3.52µm
Pixel depth 8/12 bits
Video output format 2-tap 8-bit / 2-tap 12-bit / 4-tap 8-bit / 4-tap 12-bit / 8-tap 8-bit / 10-tap 8-bit
Exposure control Set exposure time through camera control software or API programming
External trigger signal pulse width controls exposure duration
Number of I/O CC1 / CC2 / CC3 / CC4
Synchronization method Free running, free collection method
External trigger signal hard triggering method
Lens interface M72 / F
Data interface CameraLink Base / Medium / Full / Deca
Dimensions 76mm x 76mm x 37mm
Weight 360 g
Working temperature 0℃~+65℃
 Power requirement +12V ~ +24V
Typical power consumption 11W
Supporting software Teledyne Dalsa Sapera or third-party CameraLink capture card software and development kit
Compliant with CE,FCC,RoHS
Place of Origin import
Manufacturer Teledyne Dalsa

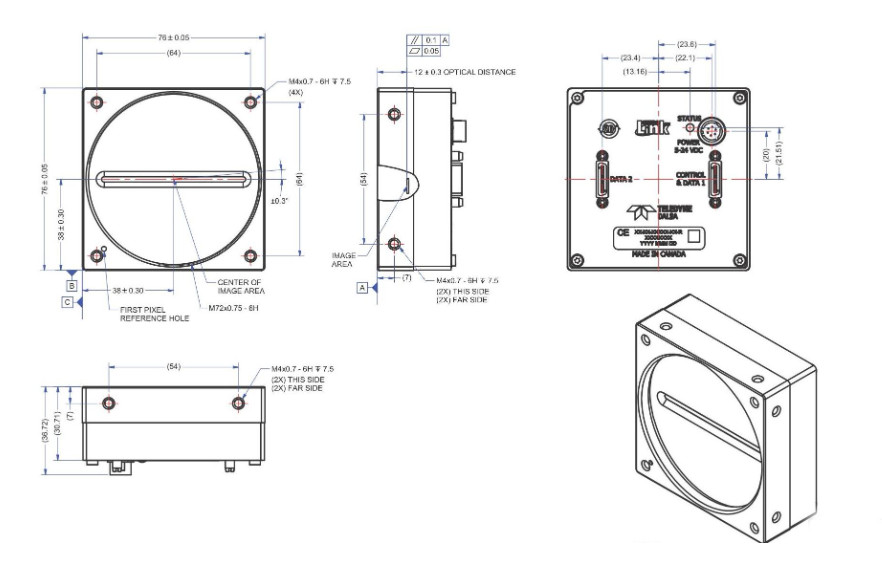

dimension
