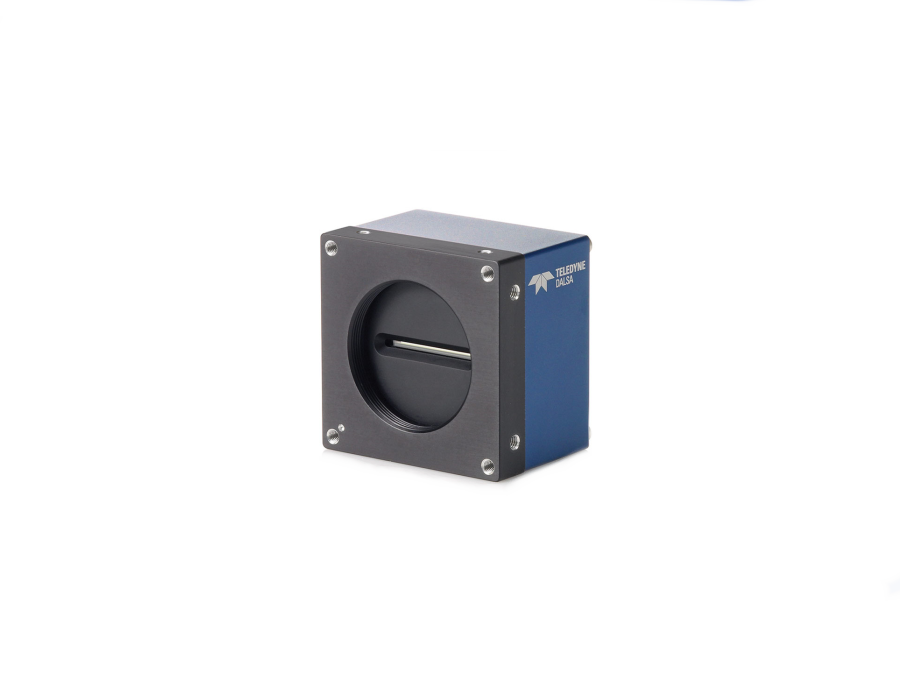

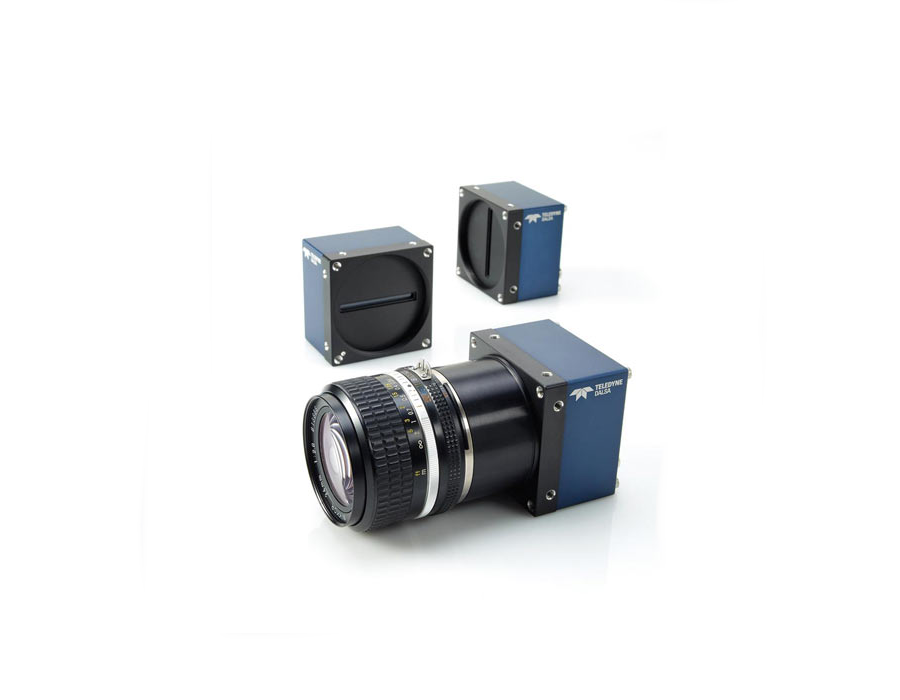

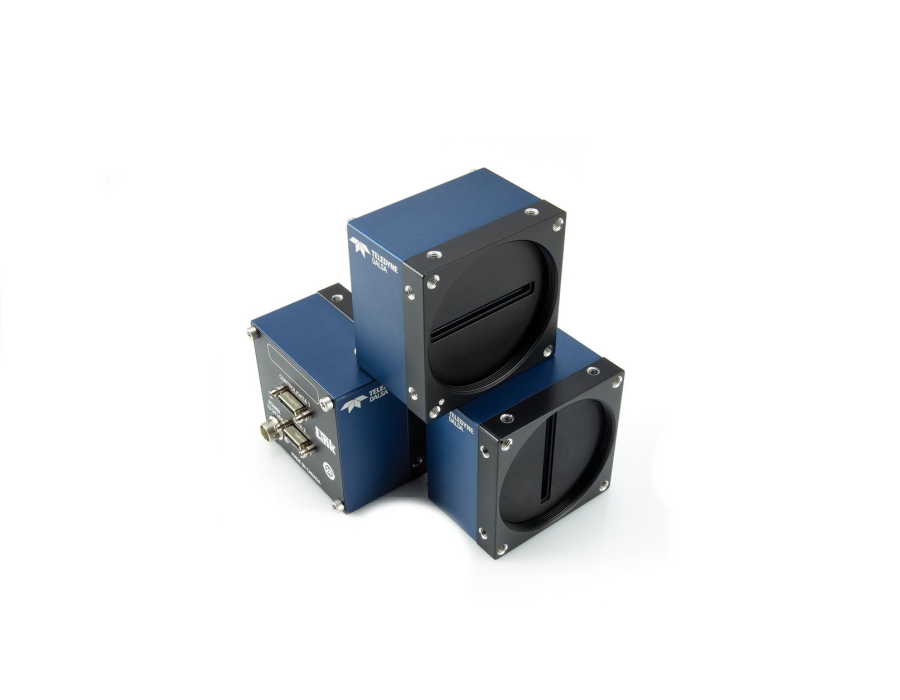

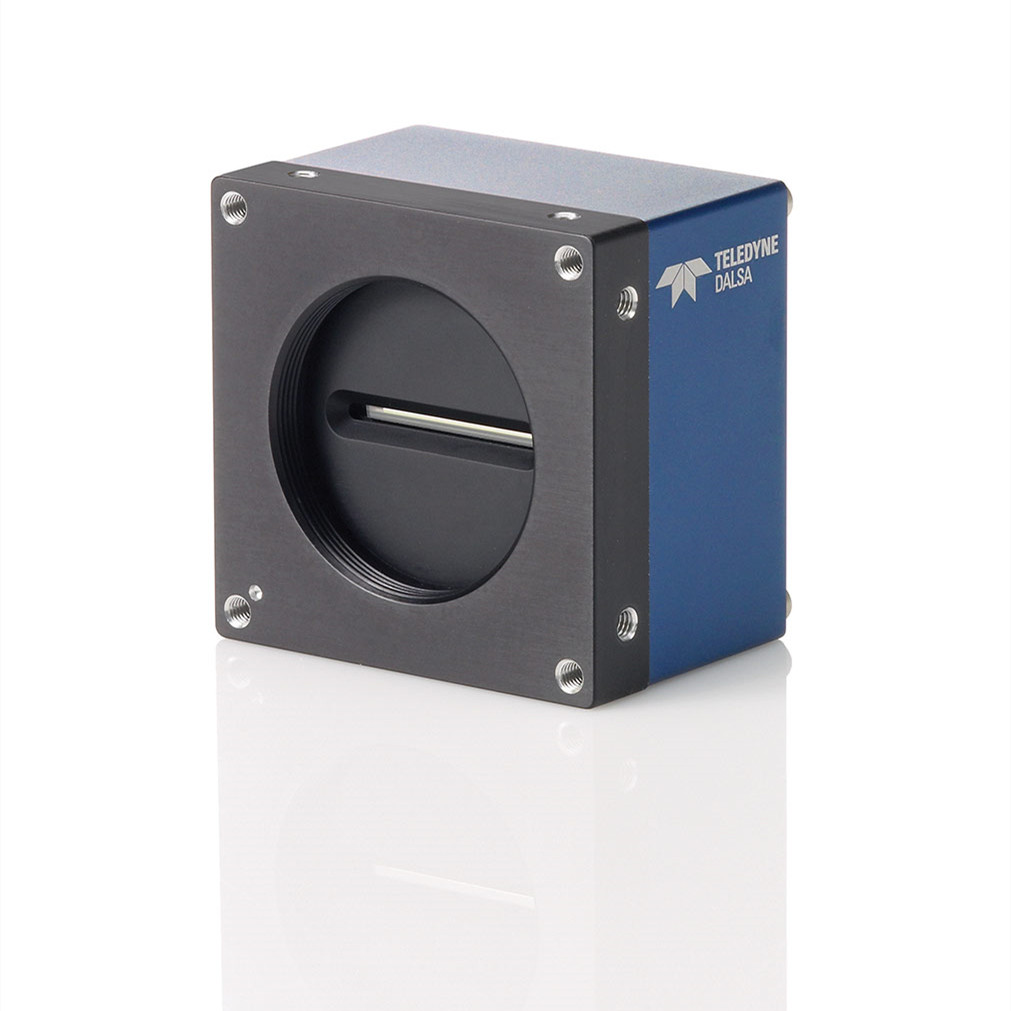

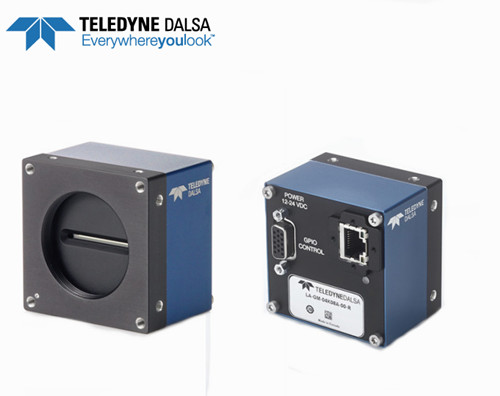

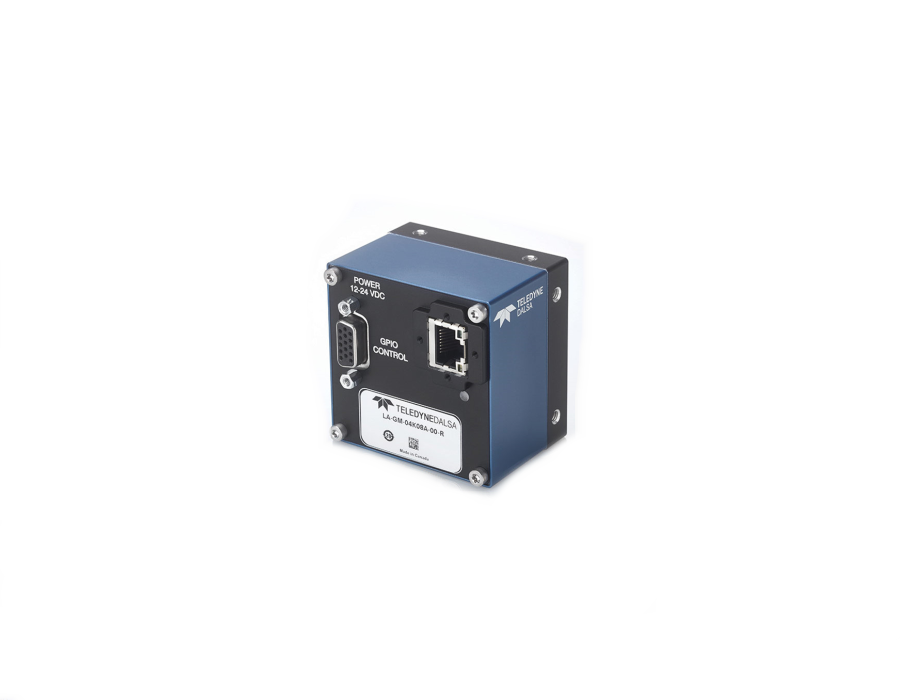

GigE line array camera produced by Teledyne Dalsa. Adopting a 2k CMOS single line photosensitive chip with a pixel size of 7 µ m x 7 µ m and a maximum line frequency of 52KHz, the TurboDriver feature can achieve a maximum speed of 80KHz. The camera has fast speed, excellent performance, outstanding sensitivity, high cost-effectiveness, compact appearance, complete flat field correction function, support for multiple ROIs, programmable GPIO intelligent triggering, multiple environmental parameter setting groups and other advanced functions. Compatible with GenICam, easy to install and integrate.
Characteristic highlights:
Outstanding cost-effectiveness
Perfect intelligent flat field correction and lens shadow correction
The GigE interface currently dominant in the market
Easy support for 100 meter data cable transmission
Flexible I/O settings, ultra-low latency, and more precise timing
Application areas:
Material classification and testing
traffic safety
General Machine Vision Applications
Product specifications
| product ID | LA-GM-02K08A |
|---|---|
| resolution | 2048 x 1 |
| Maximum line frequency | 52KHz |
| Black and white/color | black and white |
| chip type | CMOS |
| pixel size | 7.04µm x 7.04µm |
| Pixel depth | 8/12 bits |
| Video output format | Mono 8-bit / Mono 12-bit |
| Exposure Control | Set exposure time through camera control software or API programming External trigger signal pulse width controls exposure duration |
| Number of I/O | 6 GPIO ( 2 Inputs / 2 Outputs / 2Input or Output ) |
| synchronous mode | Free running, free collection method External trigger signal hard triggering method Through Ethernet soft triggering method |
| Lens interface | C / M42 / F |
| data interface | GigE |
| External dimensions | 62mm x 62mm x 47mm |
| weight | <280 g |
| operation temperature | 0℃~+65℃ |
| Power requirements | +12V ~ +24V |
| Typical power consumption | <6W |
| software kit | Sapera LT 8.00 or above version |
| Compliant with standards | CE，FCC，RoHS |
| origin | import |
| manufacturer | Teledyne Dalsa |
Dimension
