Adopting On Semis Python300 NIR chip to enhance the sensitivity efficiency in the near-infrared band. Teledyne Dalsa’s unique Burst Acquisition technology and TurboDriver features enable it to achieve a 720fps acquisition rate at VGA resolution while ensuring high-quality image quality.
Characteristic highlights:
Outstanding cost-effectiveness
Ultra small exterior design

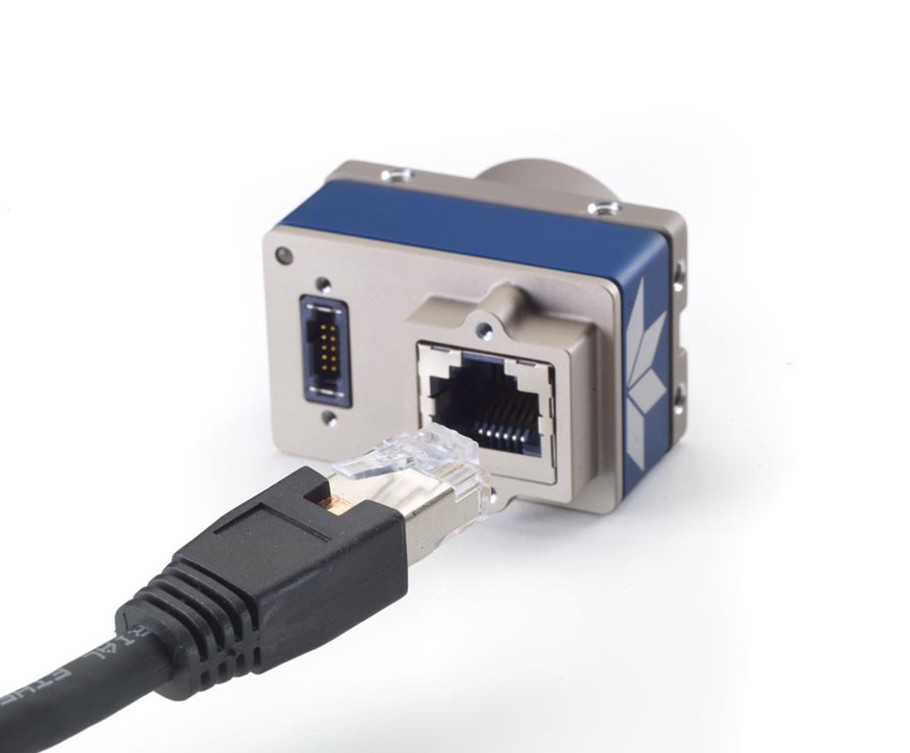

The GigE interface currently dominant in the market
Easy support for 100 meter data cable transmission
Flexible I/O settings, ultra-low latency, and more precise timing
Application areas:
Machine Vision and Inspection
Intelligent transportation and logistics
Medical and Life Sciences, Sports and Exercise
Surveillance and Security, Defense
Agricultural applications
Specifications
| Product number | G3-GM10-M0640 |
| Resolution | 672 x 512 |
| Frame rate | 345fps, up to 720fps |
| Black and White/Color | Black and White |
| Chip type | CMOS |
| Photosensitive chip | On-Semi Python300 |
| Chip type | Global Shutter CMOS |
| pixel size | 1/4″ |
| Pixel depth | 8/10 bits |
| Video output format | Mono 8-bit / Mono 12-bit |
| Exposure control | is set through camera control software or API programming to set the exposure time
|
| Number of I/O | 4 GPIO ( 2 Inputs / 2 Outputs ) |
| Synchronization method | Free running Free collection method
External trigger signal hard triggering method Through Ethernet soft triggering method |
| Lens interface | C or CS |
| Data interface | GigE |
| Dimensions | 38.9 mm x 29 mm x 44 mm (including C interface) |
| Weight | 46 g |
| Working temperature | -20℃~+65℃ |
| Power requirement | +10V ~ +36V(±10%) or PoE |
| Typical power consumption | 3.8W ~ 4.9W |
| Supporting software | Sapera LT 8.00 or above version |
| Compliant with | CE，FCC，RoHS |
| Place of Origin | import |
| Manufacturer | Teledyne Dalsa |
Dimension
