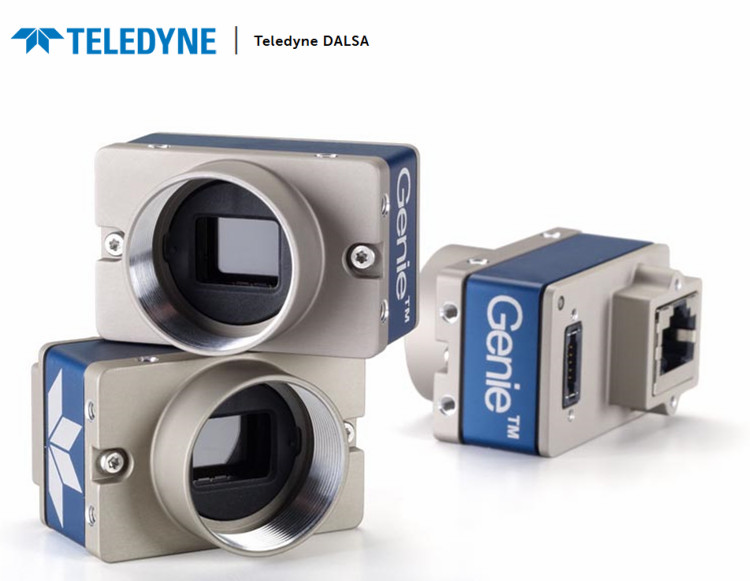

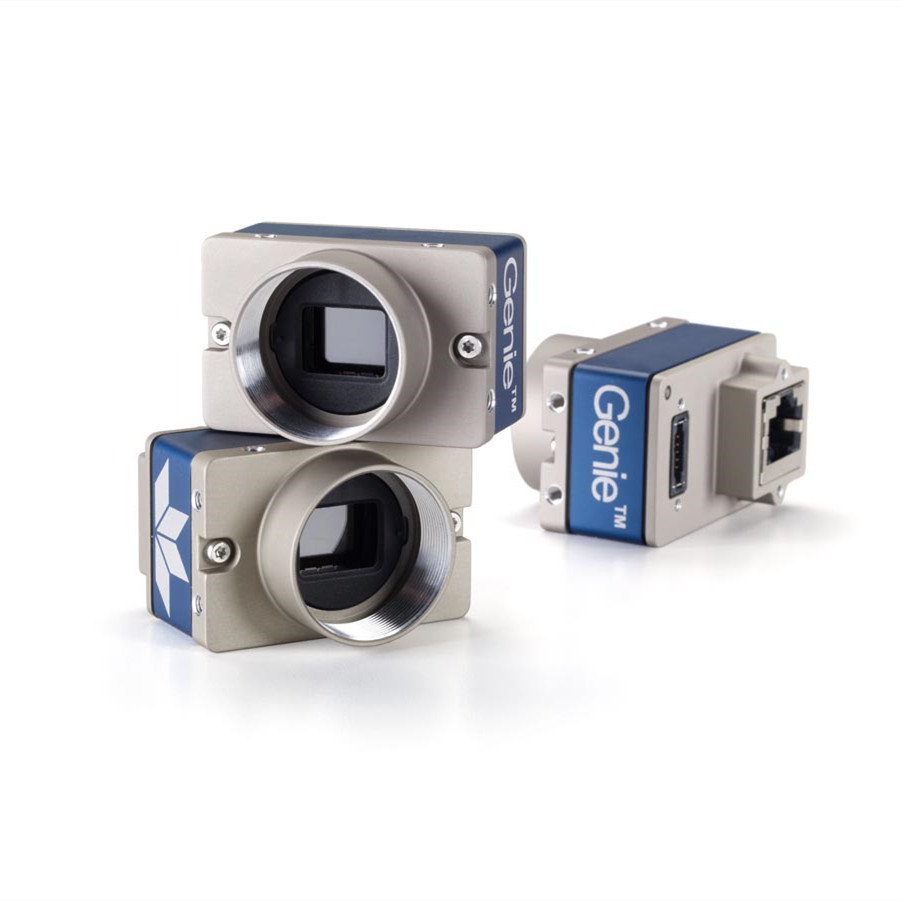

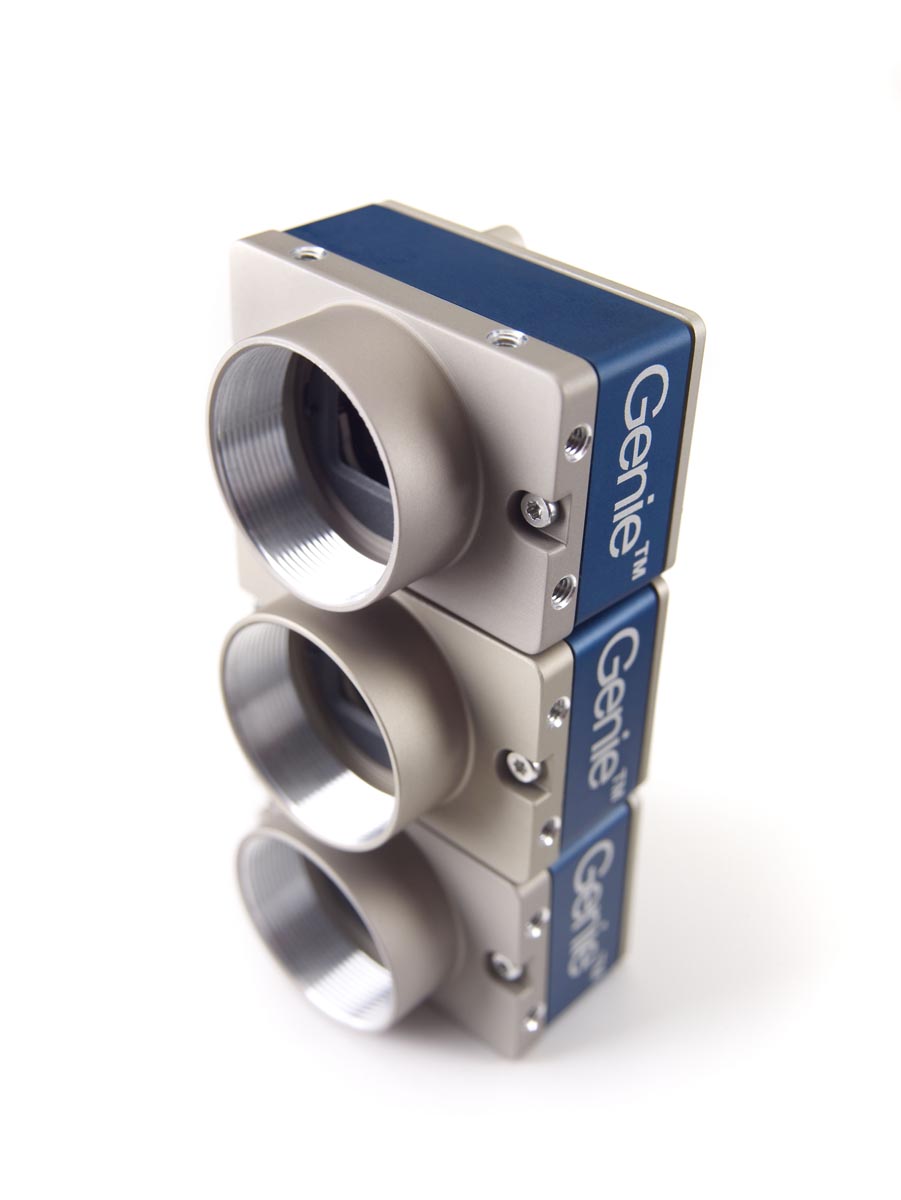

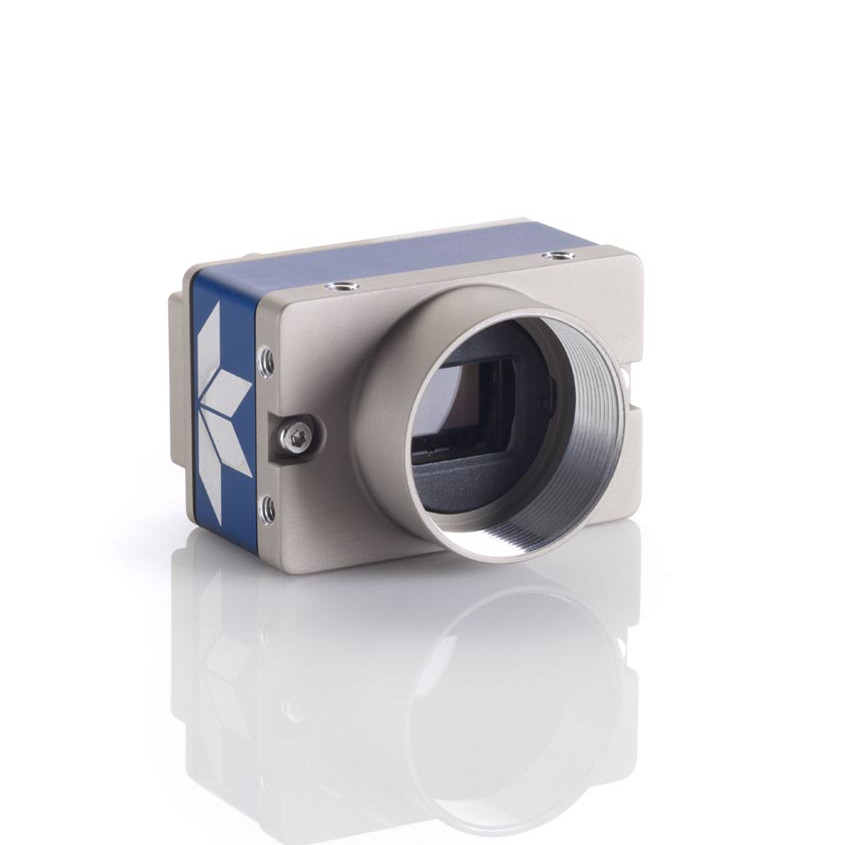

The Genie Nano M2020 Using Sony’s IMX265 black and white chip. Teledyne Dalsa’s unique Burst Acquisition technology and TurboDriver features enable it to achieve an acquisition rate of 53.3fps at a resolution of 3.2 million, while ensuring high-quality image quality.
Characteristic highlights:
Outstanding cost-effectiveness

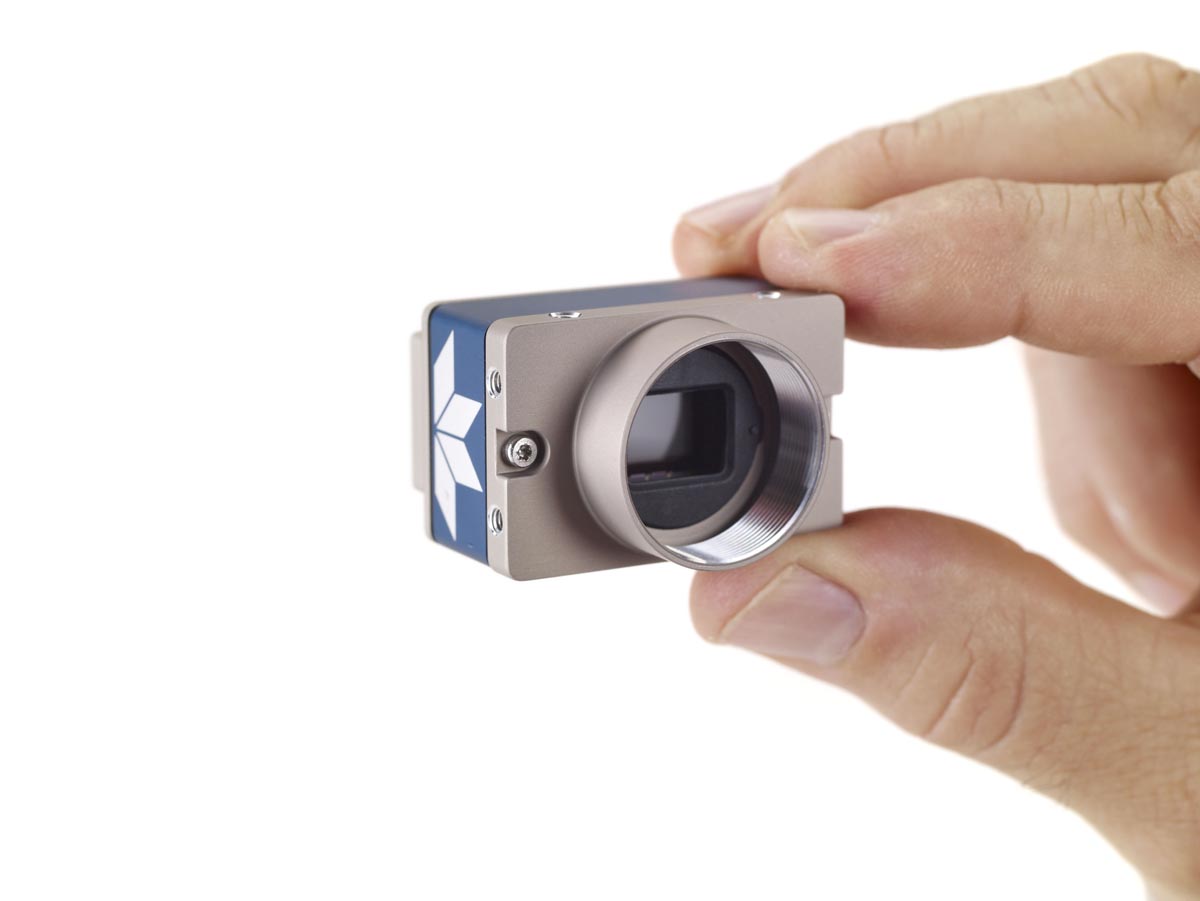

Ultra small exterior design
The GigE interface currently dominant in the market
Easy support for 100 meter data cable transmission
Flexible I/O settings, ultra-low latency, and more precise timing
application area
Industrial testing: used for detecting surface defects, size measurement, shape detection, etc. of products, such as in industries such as electronic manufacturing, automotive manufacturing, food packaging, etc.
Machine vision: used in automated production lines for object recognition, positioning, tracking, etc., to achieve automated production and quality control.
Scientific research: used in astronomy, biology, medicine, and other fields for image acquisition and analysis, helping scientists conduct research and experiments.
Medical imaging: In medical imaging equipment such as X-rays, CT, MRI, etc., it is used to obtain images of the interior of the human body to assist doctors in diagnosis.
Security monitoring: used to monitor public places, roads, buildings, etc., to achieve security prevention and monitoring management.
| Product ID | G3-GC11-C2020 |
| Resolving power | 2064 x 1544 |
| Frame speed | 38fps, up to 53.3fps with TurboDriver enabled |
| Black and white/color | Bayer color industrial camera |
| Photosensitive chip | Sony IMX265 |
| chip type | Global Shutter CMOS |
| Pixel size | 3.45µm x 3.45µm |
| Chip size | 1/1.8″ |
| Pixel depth | 8/12 bits |
| Video output format | Bayer 8-bit、Bayer 12-bit、RGBA 32-bit、RGB 24-bit、Yuv422 16-bit、Mono 8-bit |
| Exposure control | Set exposure time through camera control software or API programming External trigger signal pulse width controls exposure duration |
| Number of I/O | 4 GPIO ( 2 Inputs / 2 Outputs ) |
| Synchronization method | Free running, free collection method
External trigger signal hard triggering method Through Ethernet soft triggering method |
| Lens interface | C or CS |
| data interface | GigE |

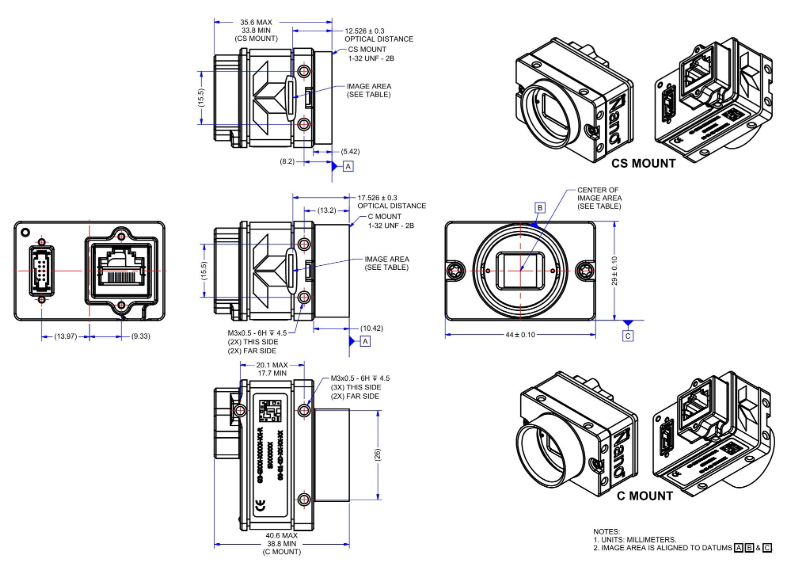

| External dimensions | 38.9 mm x 29 mm x 44 mm (including C interface) |
| weight | 46 g |
| working temperature | -20℃~+65℃ |
| Power requirements | +10V~+36V (± 10%) or PoE |
| Typical power consumption | 3.8W ~ 4.9W |
| software kit | Sapera LT 8.00 or above version |
| Compliant with standards | CE，FCC，RoHS |
| Place of Origin | Import |
| brand | Teledyne Dalsa |
