FL-CC7528-2M

Product Specs Resolution over 2 Mega-Pixel Format size 2/3″ format Focal length 75 mm Maximum aperture ratio 1:2.8 Iris range 2.8〜32 Mount C Horizontal angle of view 1/3″ format 3.8° 1/2&#......

1:
High-performance lenses for close-up imaging with 2 mega-pixel CCD and CMOS sensors
2:
Sharp high resolution, high contrast images, that limit resolution loss from the center to periphery
3:
With compact size, light weight, and durability, these are excellent lenses for FA and machine vision use
4:
They greatly reduce distortion that causes problems in image measurement and recognition
5:
Built to handle environments with vibration, etc. Easy to use, reliable focus and iris locking mechanisms as standard features

Inquiry

Product Detail

Product Specs

Resolution		over 2 Mega-Pixel
Format size		2/3″ format
Focal length		75 mm
Maximum aperture ratio		1:2.8
Iris range		2.8〜32
Mount		C
Horizontal angle of view	1/3″ format	3.8°
	1/2″ format	5.0°
	1/1.8″ format	5.7°
	2/3″ format	6.9°
Minimum object distance		0.7m
Back focal length		30.94mm
Filter size		30.5 P=0.5mm

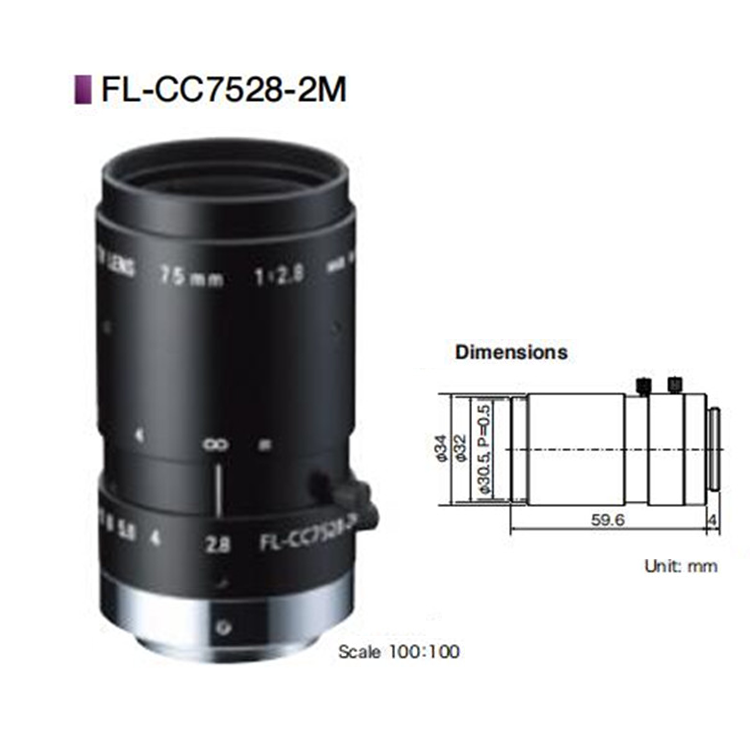

Dimensions		φ34×59.6mm
Weight		125g
Remarks		Focus & Iris lock screw
