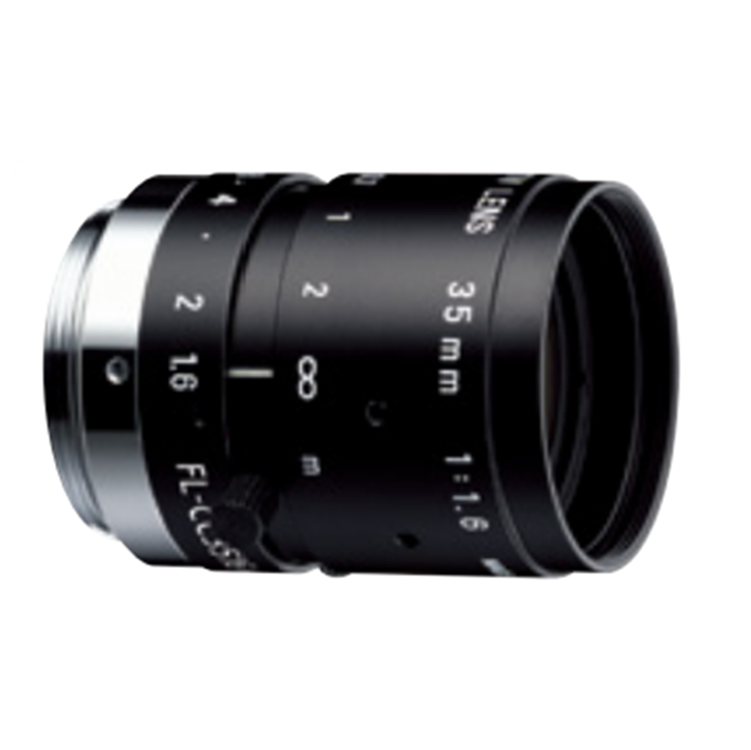

FL-CC3516-2M

Product Specs Resolution over 2 Mega-Pixel Format size 2/3″ format Focal length 35mm Maximum aperture ratio 1:1.6 Iris range 1.6～16 Mount C Horizontal angle of view 1/3″ format 8.1° 1/2......

1:
High-performance lenses for close-up imaging with 2 mega-pixel CCD and CMOS sensors
2:
Sharp high resolution, high contrast images, that limit resolution loss from the center to periphery
3:
With compact size, light weight, and durability, these are excellent lenses for FA and machine vision use
4:
They greatly reduce distortion that causes problems in image measurement and recognition
5:
Built to handle environments with vibration, etc. Easy to use, reliable focus and iris locking mechanisms as standard features

Inquiry

Product Detail

Product Specs

Resolution		over 2 Mega-Pixel
Format size		2/3″ format
Focal length		35mm
Maximum aperture ratio		1:1.6
Iris range		1.6～16
Mount		C
Horizontal angle of view	1/3″ format	8.1°
	1/2″ format	10.8°
	1/1.8″ format	12.1°
	2/3″ format	14.8°
Minimum object distance		0.4m
Back focal length		11.85mm
Filter size		27 P=0.5mm
Dimensions		φ29.5×35.4mm
Weight		64g
Remarks		Focus & Iris lock screw
