5 Mega-Pixel Lens (Manual Iris Lens, compatible with 5 mega-pixel cameras)
5MX Series

Key Feautures,

S-RANK (Best Performance Class)

• 5MX Series uses JIIA (Japan Industrial Imaging Association) lens standards and satisfy S-Rank (Best Performance Class) criteria as high-performance lenses for 2/3 5 Megapixel camera. As entire field 5 Megapixel camera lenses, they capture high resolution, distortion images not just from the center to the periphery but over the entire measurement field.

(Chart 1)

5 Mega-pixel at ALL Range

• 5MX Series lenses have a high resolution of over 147 lp/mm.
• 5MX Series keeps TV distortion to less than 0.1%, making them ideal for capturing low distortion images over the entire image measurement.

(Data 1)

(Data 2)

• *JIIA Technical Report LER-007 : Recommended specifications for high definition camera lenses
• Application (S-Rank) : For applications requiring higher resolution over the entire image.
• Evaluation Criteria (S-Rank) : Resolving spatial frequency corresponding to the Nyquist frequency over the entire image.

COMPACT DESIGH φ33mm

Despite their 5 Megapixel high resolution, its size, that features φ33mm, allows a high degree of freedom incorporating them into wide range of equipment positions.

FLOATING FOCUSING MECHANISM

The use of a floating mechanism in their focusing systems allows them to capture low-distortion, high resolution images at all distance, from infinity right down to their minimum object distance, demonstrating maximum performance at any magnification.

FL-CC0820-5MX

Specifications(PDF)

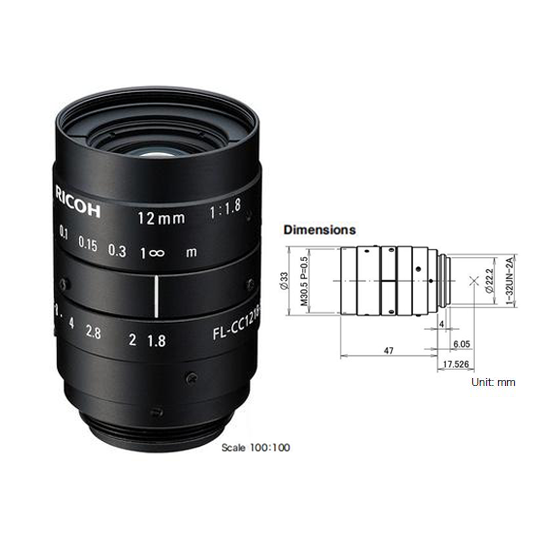

FL-CC1218-5MX

Specifications(PDF)

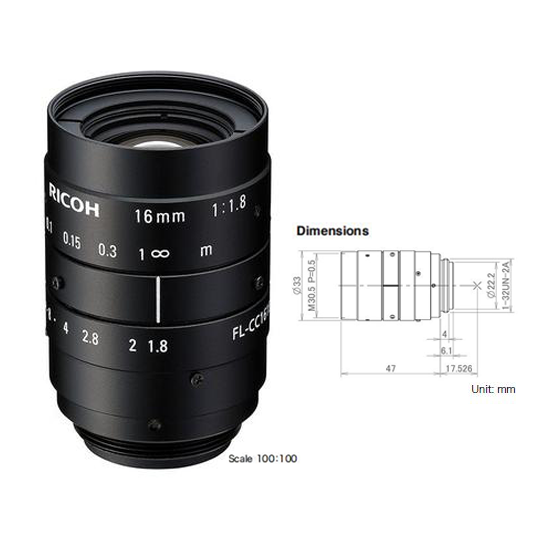

FL-CC1618-5MX

Specifications(PDF)

FL-CC2518-5MX

Specifications(PDF)

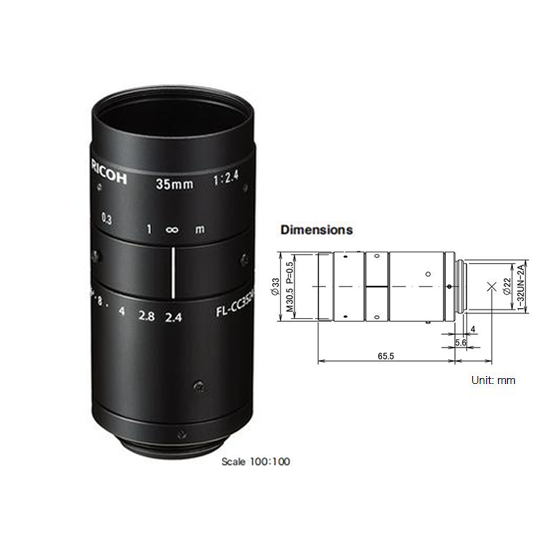

FL-CC3524-5MX

Specifications(PDF)
