Fisheye lenses

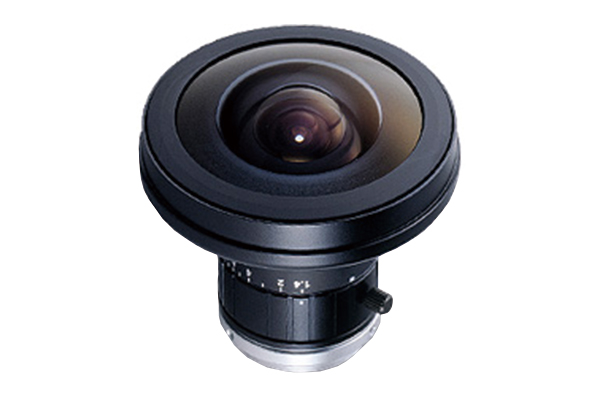

FE185 Series
Super wide-angle lenses with a 185° field of view compatible with 5-megapixel high resolution sensors
![[photo] FE185 Series super wide-angle lens standing upright](https://asset.fujifilm.com/www/us/files/2019-09/f58e13d53614f835866a4d49f19fe798/pic_FE185_01.jpg)
Main features
Two models for different image circles
The f θ method, which is the most suitable to display images uniformly, makes processing easily by graphics software.
The FE185C086HA-1 is compatible with 1″ cameras.
![[photo] Simulation images taken with FE185C086HA-1 - 1 inch sensors, 2/3 inch sensors, and 1/2 inch sensors](https://asset.fujifilm.com/www/us/files/2019-09/71377ed574ba0a617ff6efa3c6006598/pic_FE185_02.jpg)
Simulation images taken with FE185C086HA-1
The FE185C057HA-1 is compatible with 2/3″ cameras.
![[photo] Simulation images taken with FE185C057HA-1 - 2/3 inch sensors, 1/2 inch sensors, 1/3 inch sensors](https://asset.fujifilm.com/www/us/files/2019-09/ba9ad5ae452f5d55e3acd6df14c23c13/pic_FE185_03.jpg)
Simulation images taken with FE185C057HA-1
High resolution for 5MP sensors
FE185C057HA-1: 3.45μm pixel pitch
FE185C086HA-1: 5μm pixel pitch
Metal mount with high durability and accuracy (C-mount)
Manual iris
Locking screws for fixing iris is supplied as standard equipment.
Made in Japan
Lineups
FE185C086HA-1
![[photo] FE185C086HA-1 super wide-angle fisheye lens standing upright](https://asset.fujifilm.com/www/us/files/2019-09/2ee7e325c018a3d300d903fa9ef090d4/pic_FE185_04.jpg)
| Focal length [mm] | 2.7 | |
| Iris range | F1.8 – F16 | |
| Mount | C-mount | |
| Operation | focus | Fixed |
| iris | Manual | |
| Angle of view | 1” | 185.0° x 185.0° (Ø8.6mm) |
| 2/3” | 185.0° x 140.6° | |
| 1/2” | 136.3° x 102.3° | |
| Working Distance*1 [mm] | ∞‐200 | |
| Sensor size (std.)*2 | ‐ | |
| Sensor size (max.)*3 | 1″ (5μm) | |
| Weight (g) | 160 | |
| Working temperature | -10°C – +50°C | |
FE185C057HA-1
![[photo] FE185C057HA-1 super wide-angle fisheye lens standing upright](https://asset.fujifilm.com/www/us/files/2019-09/9c5bdcd4ef3d5d7ecd88aa9656325ccc/pic_FE185_05.jpg)
| Focal length [mm] | 1.8 | |
| Iris range | F1.4 – F16 | |
| Mount | C-mount | |
| Operation | focus | Fixed |
| iris | Manual | |
| Angle of view | 2/3” | 185.0° x 185.0° (Ø5.7mm) |
| 1/2” | 185.0° x 154.1° | |
| 1/3” | 154.1° x 115.4° | |
| Working Distance*1 [mm] | ∞‐100 | |
| Sensor size (std.)*2 | ‐ | |
| Sensor size (max.)*3 | 2/3″ (3.45μm) | |
| Weight (g) | 135 | |
| Working temperature | -10°C – +50°C | |
- *1 From front of lens barrel.
- *2 Sensor size (std.): Ideal size to maximize the target resolution.
- *3 Sensor size (max.): Adaptable sensor size varies depending on the model. Please check the amount of light and resolution on the edges pertaining to your particular application.
