M0824-MPW2 - Kokar丨Optical Lens Manufacturer in China

Product Detail

Specification	Details
Model Number	M0824 – MPW2
Max. Image Size	2/3″
Resolution	5MP
Focal Length	8mm
Max. Aperture	f/2.4
Aperture Range	f2.4 – f16.0
Mount	C
M.O.D. (Minimal Object Distance)	50mm
Distortion	2/3″: -1.87% (y = 5.5) 1/1.8″: -1.55% (y = 4.32) 1/2″: -1.42% (y = 4.0)
Iris Control	Manual
Focus Control	Manual
Filter Thread	M32.0 p = 0.5mm
Effective Lens Aperture Front	φ21.0mm
Effective Lens Aperture Rear	φ12.0mm
Back Focal Length	13.7mm
Flange Back Length	17.526mm

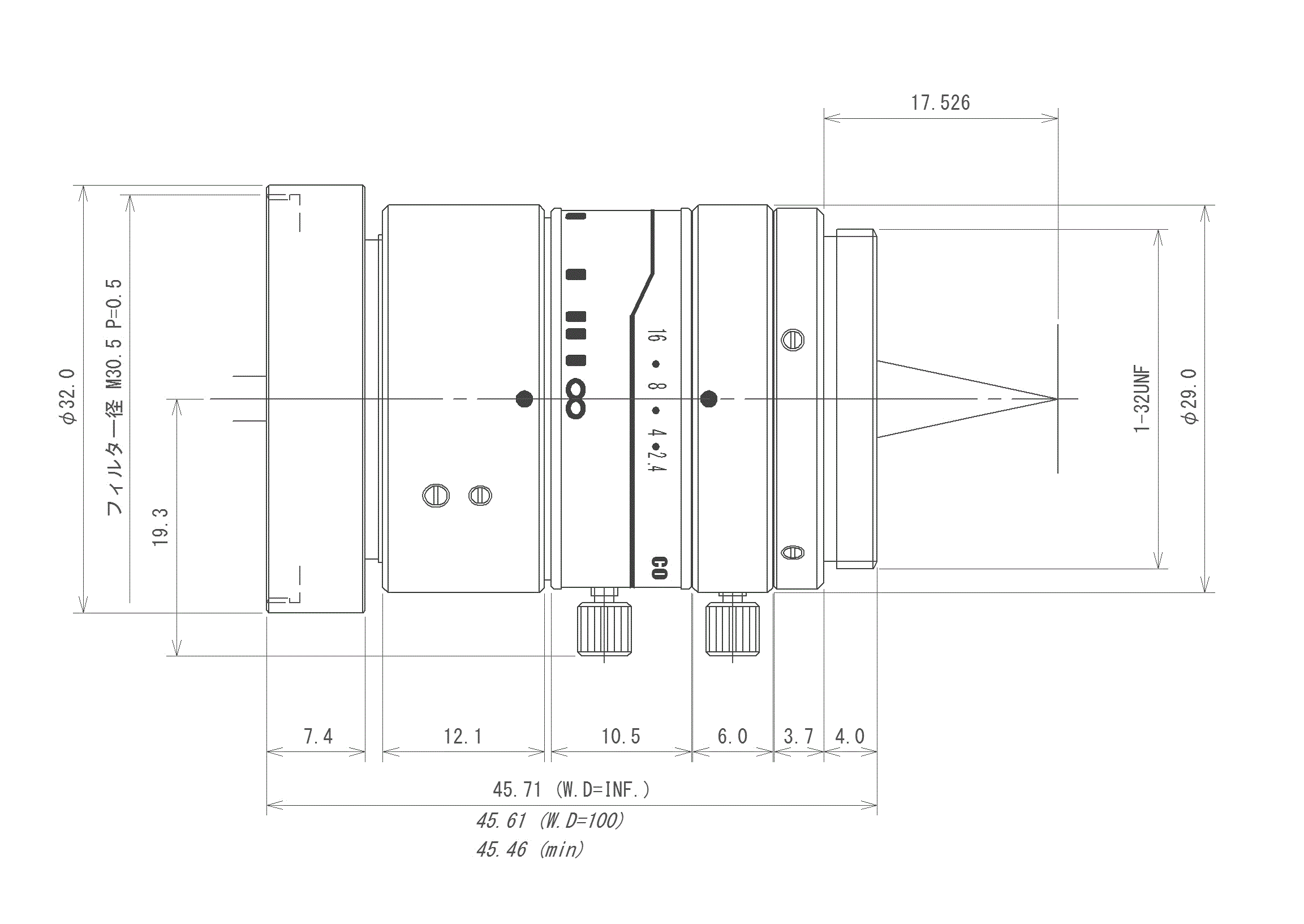

Dimension	φ32mm x 45.71mm
Weight	80g
Operating Temperature	-10°C – +50°C
Field of View (2/3″)	D: 69.32°, H: 57.80°, V: 44.36°
Field of View (1/1.8″)	D: 56.90°, H: 46.72°, V: 35.75°
Field of View (1/2″)	D: 53.23°, H: 43.74°, V: 33.23°
Object Dimensions at MOD (2/3″)	5.4cm x 7.4cm
Object Dimensions at MOD (1/1.8″)	4.3cm x 5.7cm
Object Dimensions at MOD (1/2″)	3.9cm x 5.3cm
