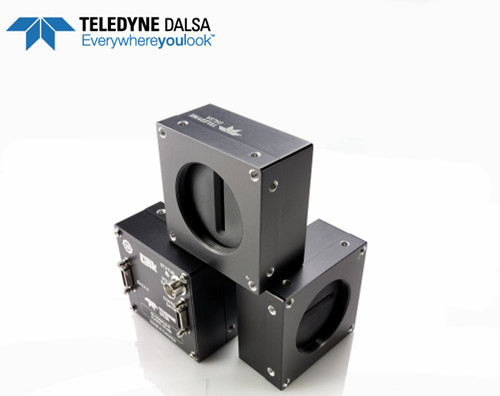

Introducing Linea, a CMOS line scan camera that can help you improve your imaging and lower your costs. Linea starts with an advanced CMOS sensor with high quantum efficiency and low noise for better images. Linea is also packed with advanced features to make your machine vision job almost effortless.
Linea line scan cameras deliver the performance and features usually found in high-end cameras at an attractive price point. Based on advanced CMOS line scan technology, Linea GigE cameras have a 2k or 4k single line 7.04 µm x 7.04 µm pixel array. With excellent sensitivity and speed, Linea surpasses the requirements of demanding applications —such as materials grading and inspection, transportation safety, and general purpose machine vision.
Latest generation CMOS technology.
Linea uses Teledyne DALSA’s own advanced CMOS line scan sensors with high QE and low noise for better image quality. Available in resolutions from 2k to 16k, and now with color options.
Break through the GigE limit.
Teledyne DALSA’s proprietary TurboDrive™ technology allows Linea GigE to deliver its full image quality at line rates up to 80 kHz — several times faster than competitors — with no changes to your GigE network.
Bilinear Color
See things in a whole new light with Linea’s color option. Our bilinear color architecture maximizes color fidelity and image quality better than anything else at its price point, and still takes advantage of the incredible speed and throughput made possible with TurboDrive.
Product specifications
| Product number | LA-CC-04K05B |
| Resolution | 4096 x 2 |
| Maximum line frequency | 48KHz |
| Black and White/Color | Color |
| Chip type | CMOS |
| Pixel size | 7.04µm x 7.04µm |
| Pixel depth | 8/12 bits |
| Video output format | Base RGB 8-bit / Medium RGB 8-bit / Deca RGB 8-bit / Medium RGB 12-bit / Deca RGB 12-bit |
| Exposure control | Set exposure time through camera control software or API programming External trigger signal pulse width controls exposure duration |
| Number of I/O | CC1 / CC2 / CC3 / CC4 |
| Synchronization method | Free running, free collection method External trigger signal hard triggering method |
| Lens interface | M42 / F |
| Data interface | CameraLink Base / Medium / Deca |
| Dimensions | 62mm x 62mm x 47mm |
| Weight | <190 g |
| Working temperature | 0℃~+65℃ |
| Power requirement | +12V ~ +24V |
| Typical power consumption | 8W |
| Supporting software | Teledyne Dalsa Sapera or third-party CameraLink capture card software and development kit |
| Compliant with | CE，FCC，RoHS |
| Place of Origin | import |
| Manufacturer | Teledyne Dalsa |

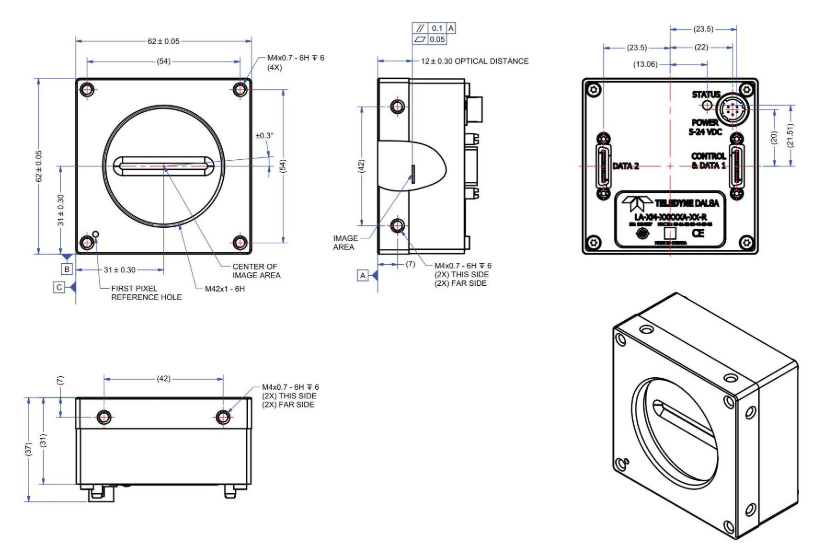

dimension
