Product Detail
| Specification | Details |
|---|---|
| Model | 25HB |
| Imager Size | 2/3″ 1/2″ 1/3″ |
| Mount Type | C |
| Focal Length | 12mm |
| Aperture Range | F1.8 – F16 |
| Field of View Angle (Horizontal x Vertical) | 2/3″: 40.9° x 30.9° 1/2″: 30.0° x 22.4° 1/3″: 22.4° x 16.6° |
| Focus Range | 0.26m – ∞ |
| Operation – Focus | Manual with lock |
| Operation – Iris | Manual with lock |
| Filter Size | M25.5 P=0.5mm |
| Wave Length | Visible light |
| TV Distortion | -1.6% ≤ d ≤ 0% |
| Weight | 46g ± 5g |
| Operating Temperature | -10°C – +45°C |
| Motion Range – Focus | 168° |
| Motion Range – Iris | 88° |

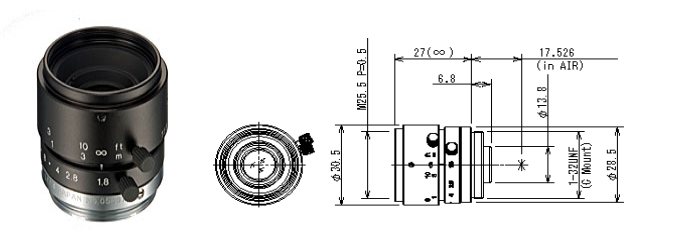

| Back Focal Length (in air) | 11.03mm |
