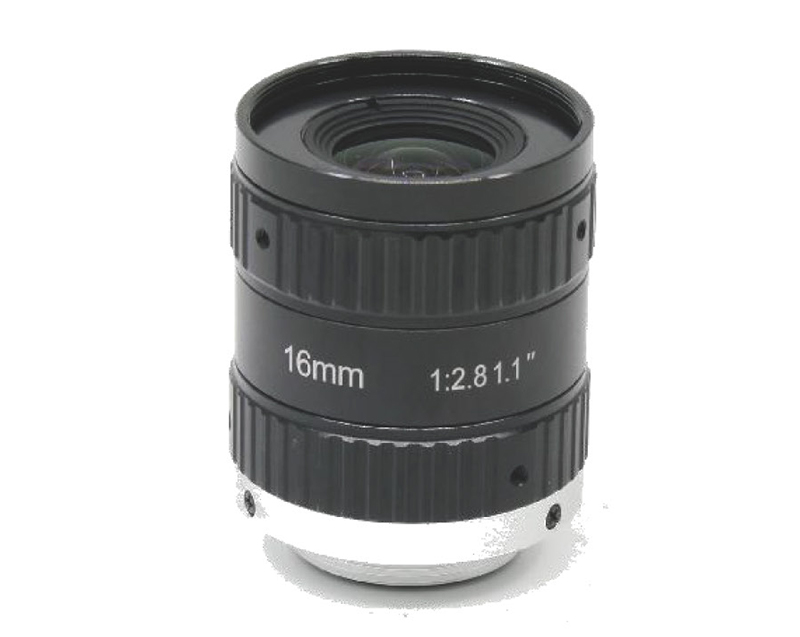

RS2816-20MP
RS2816-20MP
1.1" 20MP Serie
  • 1:

    Super high resolution lens
  • 2:

    Multi-layer coating, high transmittance, effective stray light suppression
  • 3:

    Compact structure, good shock resistance
  • 4:

    Lower distortion rate for more applications
Inquiry
Product Detail

 No.  Item  Specs
1  Imager size 1.1″(17.6mm)
2  Corresponding Wavelength 420~1000nm
3  Focal length 16mm
4  Interface C-Mount
5  Aperture range F2.8-F22
6  Angel of view
(diagonal
horizontal vertical)
1.1″ 58.6°×46.88°×35.16°
1″ 53.94°×43.92°×33.45°
1/2″ 28.23°×22.62°×16.97°
1/3″ 21.24°×16.98°×12.94°
7  Object size
(at the closest
focusing distance)
1.1″ 124.8×99.84×74.88mm
1″ 112.75×89.28×66.33mm
1/2″ 55.09×43.96×32.82mm
1/3″ 41.19×33.32×24.58mm
8  Back f ocal length (in air) 11.20mm
9  Operation Method  Focus  Manual
 Aperture  Manual
10  Aberration Rate 1.1″ -0.73%@y=8.8mm
1″ -0.7%@y=8mm
1/2″ -0.24%@y=4.0mm
1/3″ -0.14%@y=3.0mm
11  Focusing range 0.1m~∞
12  Filter Thread Diameter M34×P0.5
13  Weight 100.2g
14  Operating Temperature -20℃~+60℃
